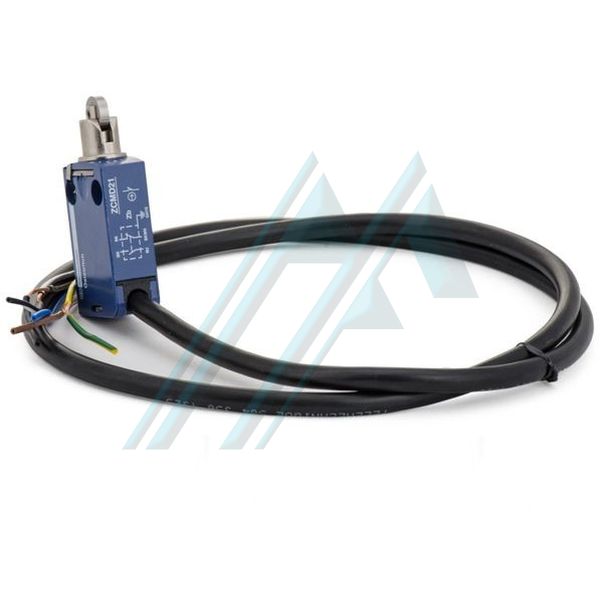

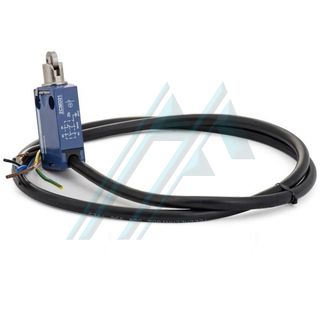

Limit switch Telemecanique XCMD2102L1

Specs :

• Sensor type: Limit switch.
• Head type: Metal roller Ø 11, 6 mm.
• Output configuration: NO + NC.
• Maximum contact current: 6 A.
• Connected voltage: max. 250 V AC, max. 250 CC.
• Connection: Cable.
• Waterproof class: IP66.
• Body dimensions: 30 x 50 x 16 mm.
• Working temperature: -25 ... 70ºC.
• Housing material: Metal.
• AC contact load capacity (at resistive load): 1.5 A / 240 VAC.
• KC contact load capacity (at resistive load): 1.5 A / 24 VDC

Switches Properties:

• Connect. switched action.

• Exit on the side.
