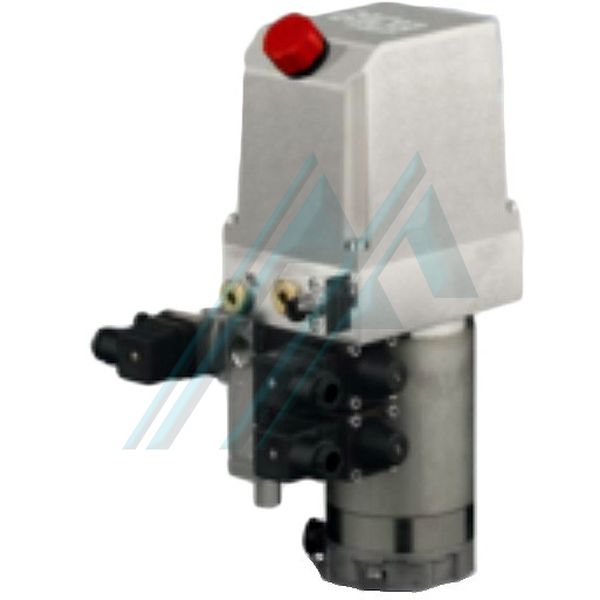

Compact DC power plant of the NPC HAWE type

PRODUCT DESCRIPTION

Compact power plants belong to the group of hydraulic power plants. These stand out for having a very compact design, since the electric motor shaft is at the same time the pump shaft.

The compact ready-to-connect control unit of the NPC type is suitable for hydraulic systems with the S2 operating mode. The NPC type contains a DC motor. The control unit is available as a vertical or horizontal version. The hydraulic pump is a radial piston pump or an external gear pump.

The compact NPC type control unit serves as a very compact system control, since the pressure limiting valve is integrated and allows direct mounting of valve blocks.

PROPERTIES AND ADVANTAGES:

- It requires very little space and its transport is easy.

- Power supply by direct current of 12V DC or 24V DC.

- Especially suitable for mobile and construction sites.

- Long service life and high reliability thanks to the use of radial piston pumps.

- It cares for the environment thanks to its reduced oil fill and easy disposal.

- Low hydraulic fluid costs.

- Range of valves and accessories specially designed from the modular system.

AREAS OF APPLICATION:

- Rivets.- Release brakes for wind energy systems.- Hydraulic equipment.- Crimps.- Stamped.

DATA SHEET:

Click the following link to consult:

- General description.

- Available versions.

- Other parameters.

- Overall dimensions.

- Annex.

- Other information.

DOWNLOAD TECHNICAL SHEET
