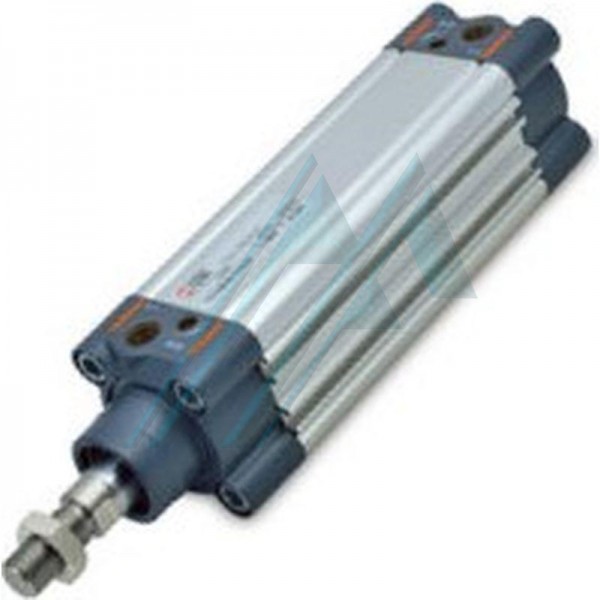

MW pneumatic cylinder ø 80 C-250 D/E

- ISO 15552 pneumatic cylinder, renewed version of the ISO 6431 cylinder.

- Plunger diameter Ø 80 mm.

- Stroke 250 mm.

- Double effect.

- With magnetic detection.

- Aluminum jacket.

- Chromed steel stem.

- With pneumatic cushioning.

- Damping: pneumatic.

- Type of fluid Air with or without lubrication.

- Maximum operating pressure 10 Bar.

- Type of NBR gaskets.

- Operating temperature -10ºC to +70ºC.

- G 3/8” air inlet thread.

- Cylinder rod thread M20x1.5.

- Maximum theoretical force that the cylinder can develop when pushed:

Pressure 5 kg/cm²: 251.3 Kg.

Pressure 6 kg/cm²: 301.6 Kg.

Pressure 7 kg/cm²: 351.9 Kg.

- Maximum theoretical force that the cylinder can develop in traction:

Pressure 5 kg/cm²: 226.8 Kg.

Pressure 6 kg/cm²: 272.1 Kg.

Pressure 7 kg/cm²: 317.5 Kg.
