CL 0.2 Ø 70 1/4 "vertical digital pressure gauge 0-480 Bar

Compact digital pressure gauge with 0.2 % accuracy and low consumption .

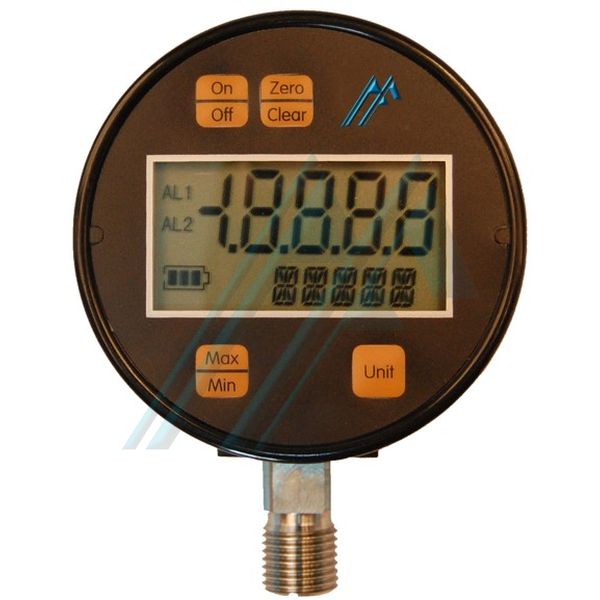

L pressure is measured and is shown four times per s econd. The upper screen displays the pressure acts l (or maximum or minimum pressure mode maximum or minimum function).

The lower display shows the mode the device is in (units of current pressure, maximum pressure , or minimum pressure).

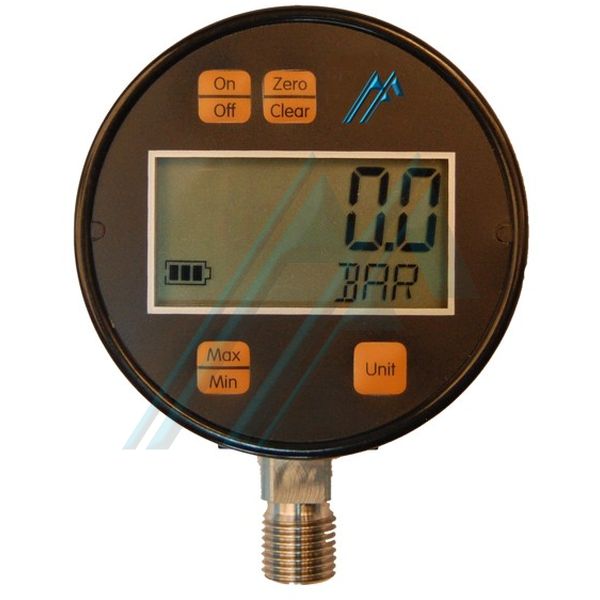

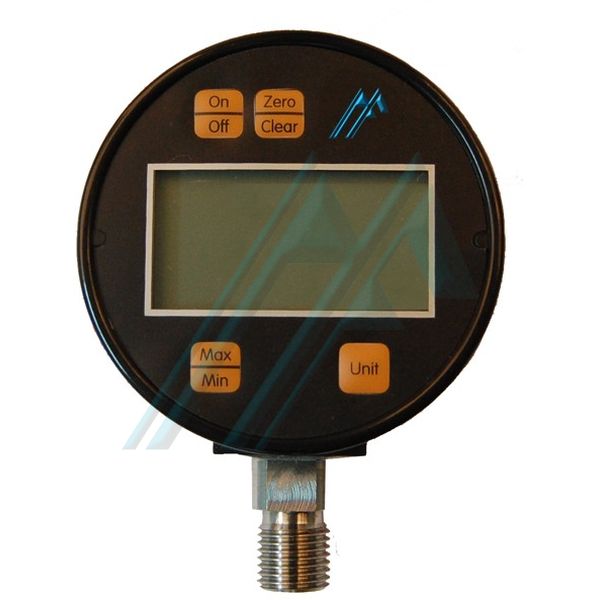

The compact digital pressure gauge has 4 buttons:

1. Button "ON / OFF". Turn the device on and off.

2. Button "Zero / Clear ” . With the gauge in measurement mode, press the button to zero the display.

3. Button "Max / Min". Select maximum pressure mode, minimum pressure and current pressure. The maximum and minimum value will be eliminated by pressing this button for a few seconds and both values will be eliminated when the device is turned off.

4. “ Unit ” button . With this button you select the unit in which the pressure will be displayed among 9 units ( bar, psi, inches of mercury column, centimeters of water column, inches of water column, feet of water column, kg / cm 2 and kPa).

Specs:

Range : 0 ... 100 mbar, 0 ... 160 mbar, 0 ... 400 mbar, 0 ... 600 m bar

Case material: ABS plastic

Accuracy : ± 0.2 % F E

Limit pressure : 1.5 times the range

Thermal effects: 0.025% FE / ºC

Storage temperature : - 20 ... 7 0 ºC

Ambient temperature : 0 ... 50ºC

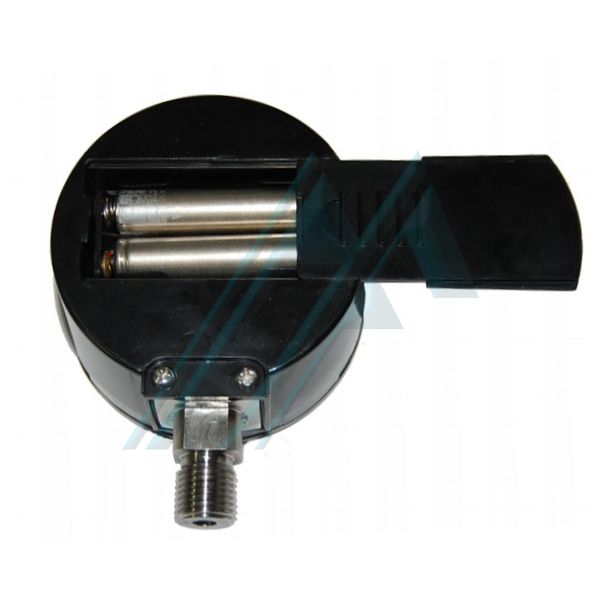

Power supply: 2 AAA batteries

Battery duration: More than 1,000 hours

Type of connection: ¼ "BSP Stainless steel will

Size: 69 x 38.1 mm

Weight: 200 g
