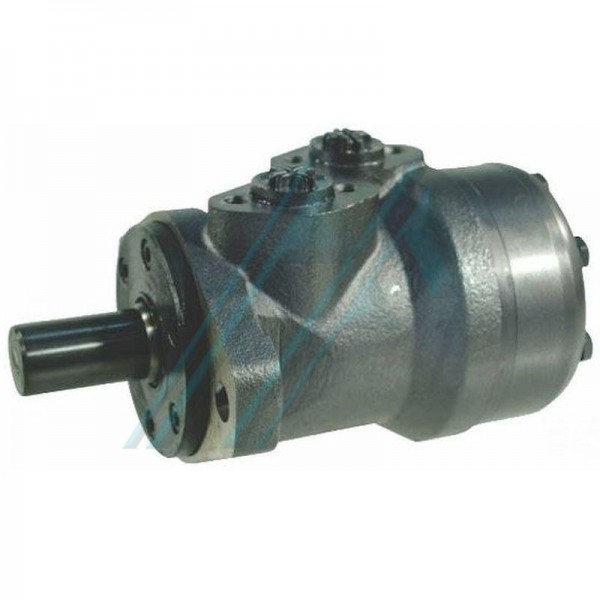

Low speed, high torque orbital (gerotor) hydraulic motor with reinforced shaft seal.
Availability : Bajo pedido, normalmente enviado en 1 semana
MOMR160
Availability : Bajo pedido, normalmente enviado en 1 semana
MOMR160
- Shaft: Cylindrical 25 mm diameter with 8 mm wide key.
- Flange: Type A2 (SAE A) with 82.5 mm diameter centring and 106.4 mm distance between the centres of the 2 bores.
- Pad width (gerotor): 27.8 mm.
- Displacement: 159.6 cm3.
- Side connections: 1/2" GAS threaded.
Drainage:
- Maximum speed: 375 rpm (intermittent: 470 rpm).
- Maximum torque: 300 Nm (intermittent: 390 Nm, peak: 460 Nm).
- Maximum power output: 10 kW (intermittent: 12.5 kW).
- Maximum engine pressure drop: 130 bar (intermittent: 175 bar, peak: 225 bar).
- Maximum oil flow: 60 litres/minute (intermittent: 75 litres/minute).
- Maximum starting pressure with unloaded shaft: 7 bar.
- Minimum starting torque at maximum continuous working pressure: 240 Nm.
- Minimum starting torque at maximum intermittent pressure: 320 Nm.
- Intermittent duty value is allowed a maximum of 10% per minute.
- Peak duty value is allowed maximum 1% per minute.
