Home>Machinery>Extractor>Belling machine UNISPEED USFL 24/37 ES OR+P

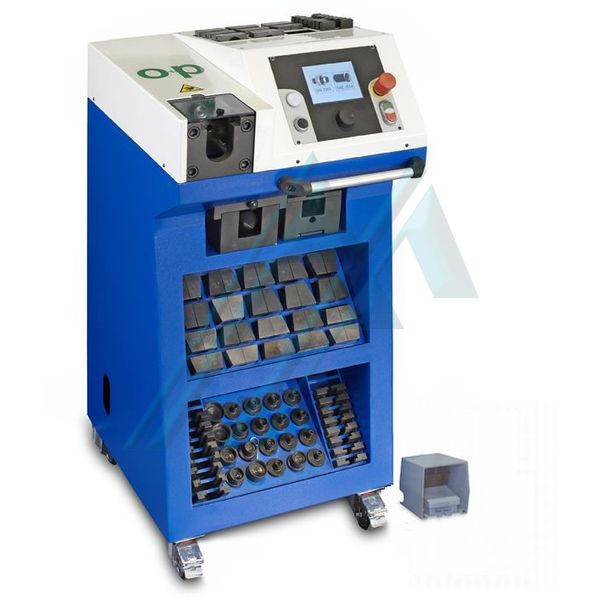

Belling machine UNISPEED USFL 24/37 ES OR+P

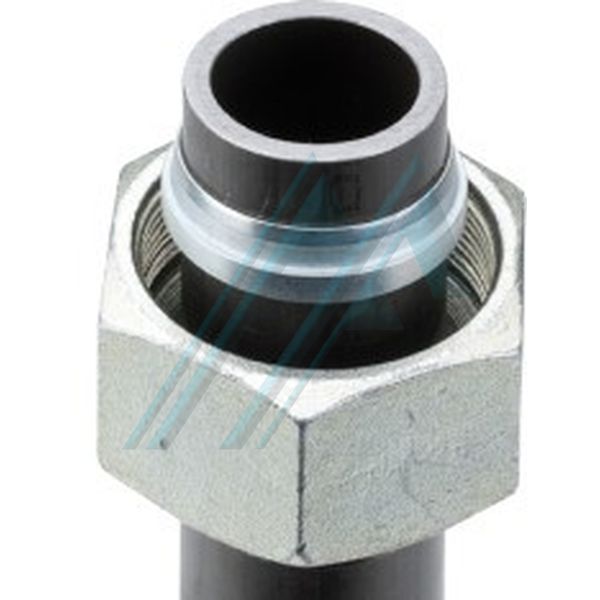

The UNISPEED USFL 24/37 ES allows the pre-assembly of the ring DIN2353 and raised to 37 ° rigid tube hydraulic up to a diameter of 42 mm and a maximum thickness of 4 mm.

More details...

Check price and availability

UNISUSFL2437ES

The machine is equipped with a double working level: a higher level for bending up to 180 ° and the lower one for standard tubes. The electronic control allows you to manage and optimize the work in such a way that the new Unispeed USFL 34/37 IT is designed particularly for the production in series.

ACCESSORIES
ELECTRONIC CONTROL WITH TOUCH SCREENIncluded

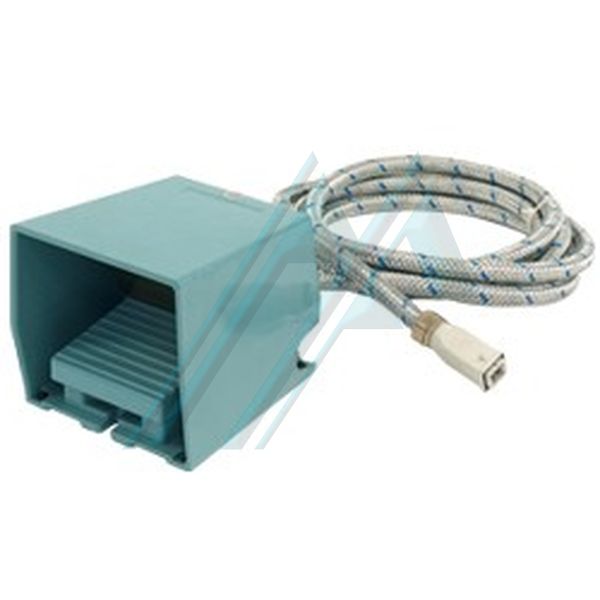

PEDAL POWEROptional
BLOCK FLARE 37° (6-42)Optional
BLOCK FLARE 37° (6-18)Optional
PORTA TOOLS (6-42)Optional
PORTA TOOLS (6-18)Optional
SPECIAL VOLTAGEOptional

  • Motor power 1.5 Kw (2 Hp)
  • Materials AISI 316 TI - ST 37.4
  • Oil 10 LT
  • Other • PREMONTAJE 24° 6 42x4 mm (0.236" 1.654"x0.158") • ABORCADADO 37° 6 42x4 mm (0.236" 1.654"x0.158")
  • Standard voltage 400V 50HZ 3PH
  • Dimensions 585x600x1150 mm (23.032"x23.622"x45.276")
  • Weight 148 KG (330 lbs)
