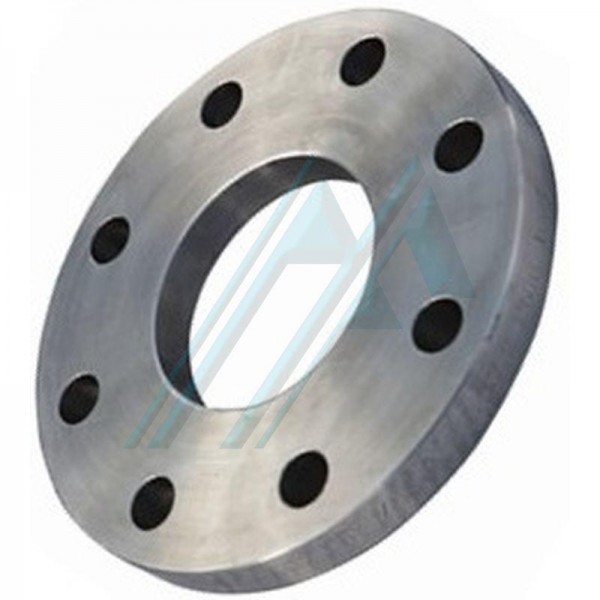

Flat flange 4" PN-10 DIN 2576 DN 100

Data sheet

.

- 4" flange in accordance with UNE-EN 1092-1 Type 01.

- External Ø measurements 220 mm. Interior Ø 116 mm. height 22 mm.

- Number of holes 8.

- Material: P245GH steel in accordance with UNE-EN 10222-2.

- Facing type: Type A, Flat Face.

- All installations must comply with PT values according to specified legal requirements.

- Standard EN 1092-1/01; DN/Ø 100

GENERAL APPLICATIONS

- General water systems.

- Water supply, pumping and connection plants.

- Industrial applications, oils and diesel.

- Fire Protection Facilities.
