90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 6 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 6 outside.- Peasda series.- Material forged steel.- Bichromated anti rust treatment.
5,13 €
90° elbow threaded nut M-12X150 to hydraulic pipe Ø 6 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-12X150.- For hydraulic pipe Ø 6 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
4,63 €
90° elbow threaded nut M-24X150 to hydraulic pipe Ø 16 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-24X150.- For hydraulic pipe Ø 16 outside.- Heavy series.- Material forged steel.- Bichromated anti-oxidation treatment.
11,50 €
90° elbow threaded nut M-22X150 to hydraulic pipe Ø 15 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-22X150.- For hydraulic pipe Ø 15 outside.- Light series.- Material forged steel.- Bichromated antioxide treatment.
7,83 €
APPLICATIONS:

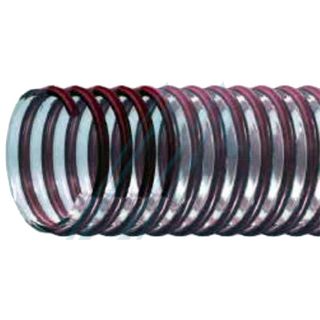

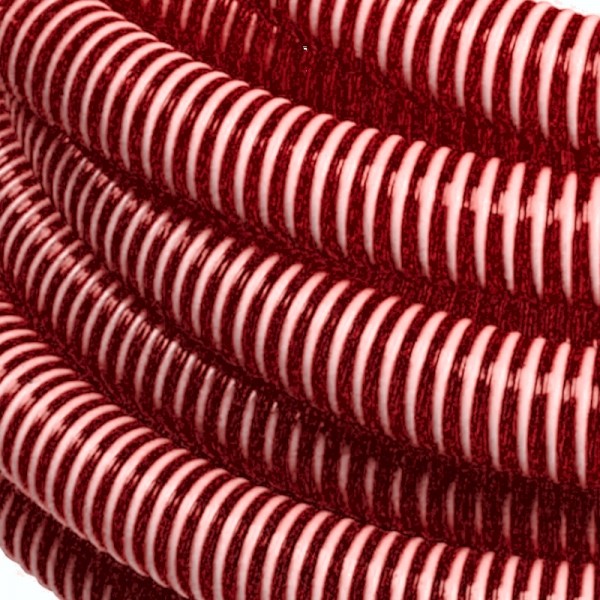

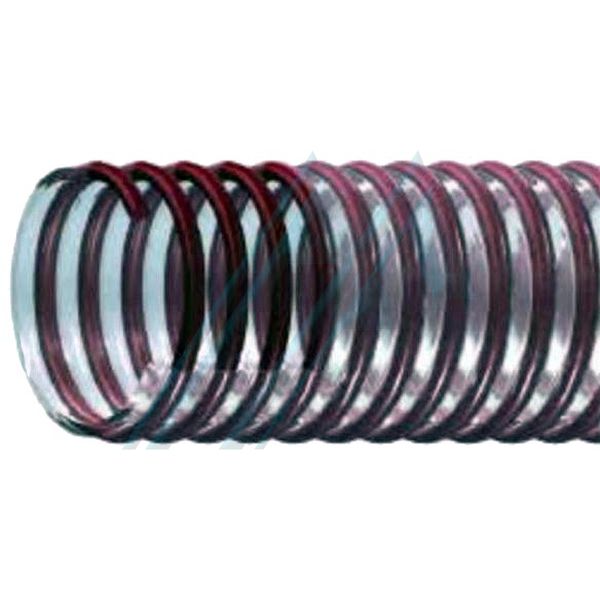

Designed for the aspiration and delivery of food liquids such as juices, wines and alcohols up to 28 ° C.
Its appearance is transparent with a red PVC spiral. Its inner and outer wall is smooth.
ID:
Red.
TEMPERATURE RANGE:
- 15º C to + 65º C.
RULE:
EEC DIRECTIVE 90/128 standard.
ISO 1307.
REFERENCE | OR INTERIOR EXTERIOR | WORK PRESSURE (Pub) | EMPTY mca | WEIGHT kg / m | CURVATURE mm |
ENOFLEX35 | 35 x 45 | 10 | 9 | 0.75 | 235 |
ENOFLEX40 | 40 x 50 | 10 | 9 | 0.85 | 260 |
ENOFLEX50 | 50 x 61 | 10 | 9 | 1.20 | 325 |
ENOFLEX60 | 60 x 72 | 9 | 9 | 1.60 | 380 |
ENOFLEX70 | 70 x 84 | 7 | 9 | 1.80 | 450 |
ENOFLEX80 | 80 x 94 | 7 | 9 | 2.20 | 530 |
ENOFLEX100 | 100 x 116 | 5 | 9 | 3.30 | 700 |
