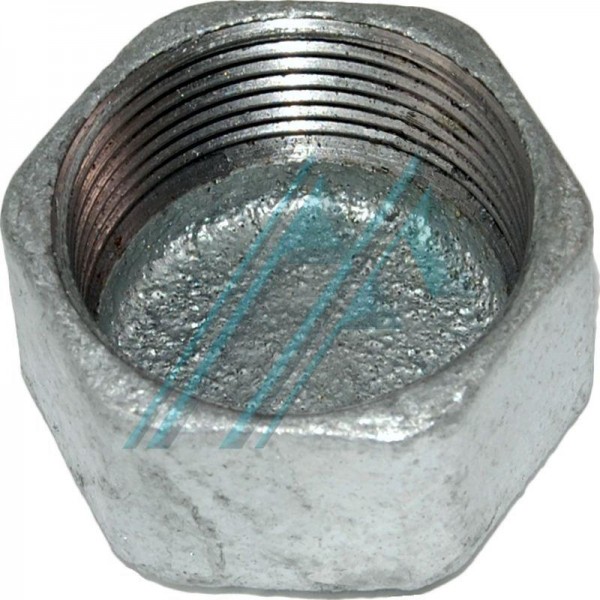

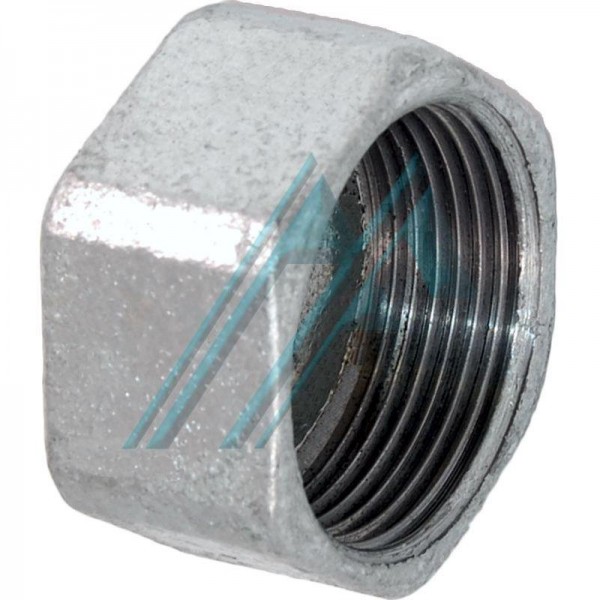

Galvanized plug 2 "1/2 female 2" 1/2 Figure 300

FEATURES:

- Manufactured under the UNE EN 10242 standard.

- Union threads according to ISO 7-1 (DIN 2999 / BS 21).

- Nominal diameter DN under ISO 6708.

- Dimensions according to ISO 49 and DIN 2950.

- Standard working pressure 25 bars.

- Temperatures between -20 and 300 ° C.

- The mass of the zinc coating is greater than 500 gr / m2.

- Minimum average thickness of galvanized 70 µm.

- Protected by an antioxidant varnish.

- The surfaces of the EO accessories are free of polycyclic aromatic hydrocarbons.

UTILIZATION:

- For hot and cold water, oil, air, gas and steam

- Fire facilities.
