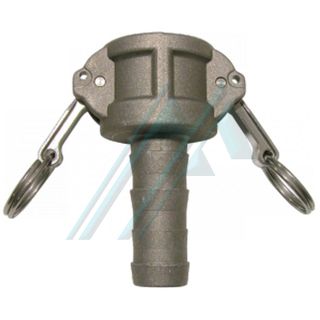

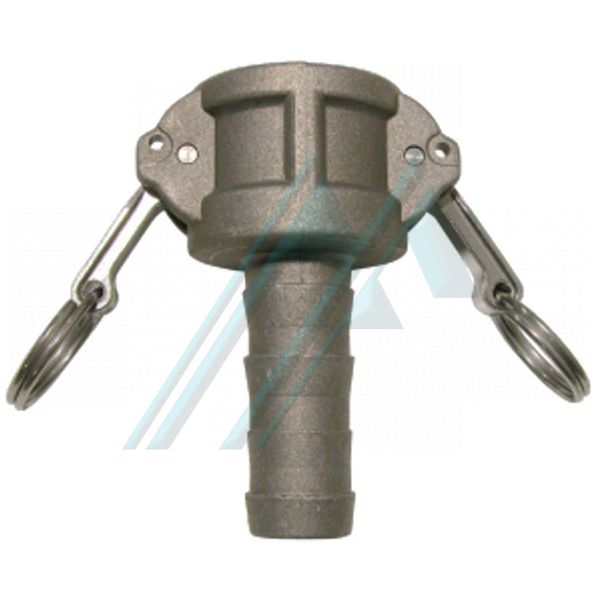

KAMLOK C Series Coupling (Spigot)

Quick connection system with flat seat and gasket. Indicated for hoses and tubes, according to DIN 14420-7 (before 2828) and MIL - C27487.

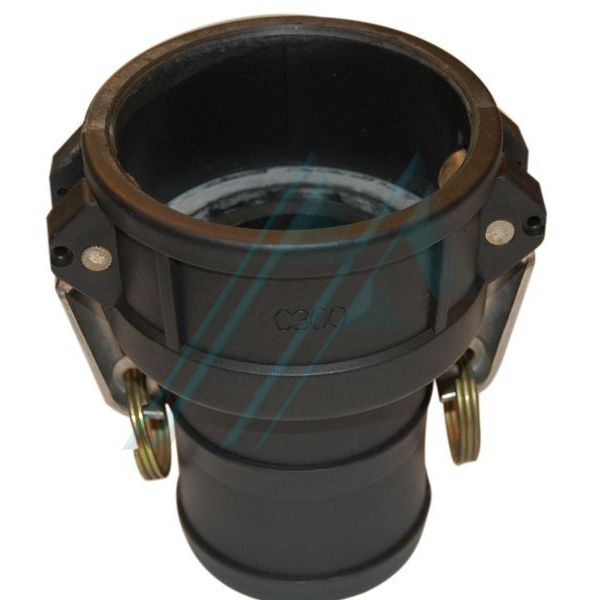

Nominal pressure; ALUMINUM and POLYPROPYLENE 10 bar with NBR seal.
Working temperature: -10ºC to + 80ºC.
Vibration resistance.

HIDRAFLEX reference and measurement indication

DV633C12AL

DV633C19AL

DV633C25AL ...

DV633C32AL ...

DV633C38AL

DV633C50AL

DV633C65AL

... 80 ...

G ½ ”

G ¾ "

G 1 "

G 1 ”¼”

G 1 ”½”

G 2 "

G 2 ”½”

G 3 "

Example: DV633B12AL, it would be:
- KAMLOK -DV633 coupling;
- Male thread –B;
- Size ½ ”-12;
- Made of aluminum - AL.
