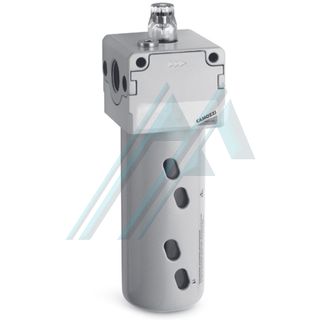

The lubricators are supplied with connections of G1/4. The glass of these lubricators have a metal shield and visor clear.
The oil flow is visible through the terminal transparent and can be regulated by means of a screw-dosed.
Availability : Under the order, normally sent out in 3 weeks
CMC104L00
General features:
Type construction: modular, compact
Materials: zama, NBR, technopolymer
Threaded connections: G1/4
Capacity oil: cm3 37
Weight: kg 0,338
Mounting: vertical in-line or wall
Working temperature: -5°C ÷ 50°C at 10 bar (with the dew point of the fluid lower than 2°C at the min. Working temperature)
Oil charge: without pressure (G1/4)
Lubricating oil: da 3°E ÷ 10°E (ask for types to our technicians)
Execution: painted
Working pressure: 0 ÷ 16 bar
Pressure min. spraying (Nl/min): 1 bar: 8; to 6 bar: 15
Dimensions:
| MODEL | To | B | C | D | And | F | G | H | M | N | P | Q | T | Or |
| CMC104L00 | 148 | 83 | 40 | 25 | 11 | 107 | 41 | 4,5 | 45 | 45 | 37 | 84 | 35 | G1/4 |
