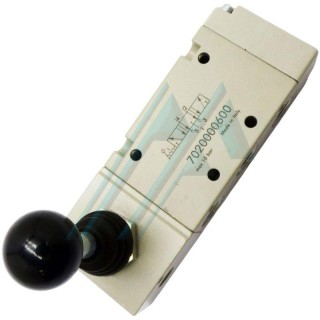

Compressed air valve MW 5/3 O/C 1/4" manual lever 90°

- 90º manual compressed air valve.

- Lever operation.

- Reference MAV 36 LEO CC.

- Fluid Air under pressure or vacuum, with or without lubrication.

- Aluminum valve body material.

- Slide material Nickel-plated aluminum.

- NBR gaskets.

- 5-way 3-position scheme.

- Open center.

- 1/4" female threads.

- Lever operation.

- Working pressure 10 bar.

- Temperature: -10÷60ºC.

- Nominal diameter 7.5 mm.

- Flow rate at 6bar ΔP 0.5bar 750 Nl/min.

- Flow rate at 6bar ΔP 1bar 1100 Nl/min.

- Mounting in any position.
