Adapter male JIC thread 1"5/8 to male thread 1"7/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
25,88 €
Adapter male JIC thread 1"5/8 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
18,17 €
Adapter male JIC thread 1"5/8 to male thread 1"5/16 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
23,08 €
Adapter male JIC thread 1"5/16 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
52,17 €
90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €

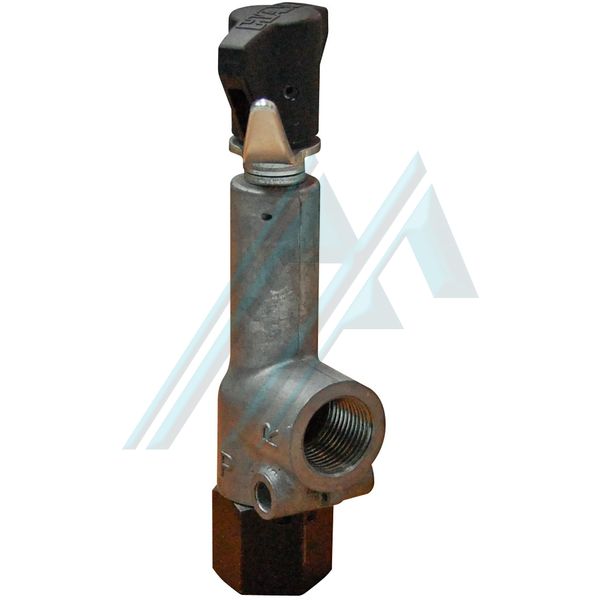

MODEL | Rang. Presión (*) bar | L/MIN | ROSCA | ||||
A | B | C | E | F | |||
MV41*R | 0...700 | 0...500 | 0...315 | 0...160 | 0...80 | 12-20 | 1/4 |
MV42*R | 0...700 | 0...500 | 0...315 | 0...160 | 0...80 | 12-20 | 3/8 |
MV52*R | 0...700 | 0...500 | 0...315 | 0...160 | 0...80 | 20-40 | 3/8 |
MV53*R | 0...700 | 0...500 | 0...315 | 0...160 | 0...80 | 20-40 | 1/2 |
MV63*R | 0...700 | 0...500 | 0...315 | 0...160 | 0...80 | 40-75 | 1/2 |
MV64*R | 0...700 | 0...500 | 0...315 | 0...160 | 0...80 | 40-75 | 3/4 |
