506008
Flexible pipe 1/2" DIN EN 853 2SN / SAE 100R2AT
SALES PRICE PER METER: 1 UNIT = 1 METER
8,58 €
Flexible pipe 1/4" DIN EN 853 2SN / SAE 100R2AT
SALES PRICE PER METER: 1 UNIT = 1 METER
6,25 €
Flexible pipe 5/16" DIN EN 853 2SN / SAE 100R2A
SALES PRICE PER METER: 1 UNIT = 1 METER
6,67 €
Flexible pipe 3/8" DIN EN 853 2SN / SAE 100R2AT
SALES PRICE PER METER: 1 UNIT = 1 METER
7,67 €
Flexible pipe 1" 1/2 DIN EN 853 1SN / SAE 100R1
SALES PRICE PER METER: 1 UNIT = 1 METER
28,79 €
Flexible pipe 2" DIN EN 853 1SN / SAE 100R1AT
SALES PRICE PER METER: 1 UNIT = 1 METER
35,42 €
Flexible pipe 2"1/2 DIN EN 853 1SN / SAE 100R1
SALES PRICE PER METER: 1 UNIT = 1 METER
62,54 €
Flexible pipe 3" DIN EN 853 1SN / SAE 100R1AT
SALES PRICE PER METER: 1 UNIT = 1 METER
78,42 €
Availability : Bajo pedido, normalmente enviado en 1 semana
506008

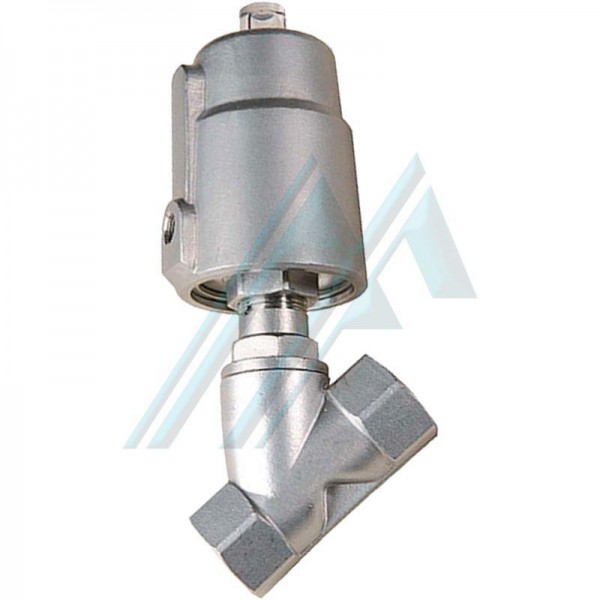

- Stainless steel inclined seat valve.
- 1"1/2 female thread.
- Single-acting actuation using compressed air.
- Without pressure closed.
- Material stainless steel 1.4408 (CF8M).
- PTFE valve seat.
- Visual position indicator.
- Maximum working pressure: 16 bar.
- Control air pressure: 3 ~ 8 bar.
- Working temperature: -10 ºC ~ +180 ºC.
- Maximum fluid viscosity: 600 mm2 /s.
