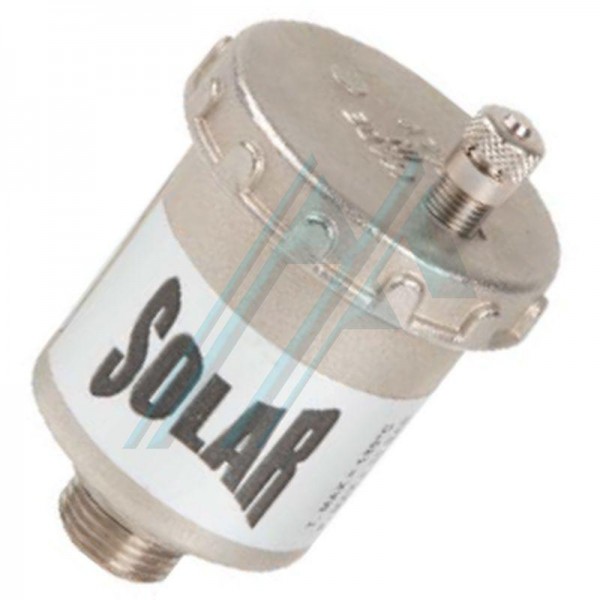

Automatic air vent special for solar energy 3/8" male thread

Technical data

.

- Automatic air vent special for solar energy.

- Male thread 3/8".

- Brass body and internal metallic elements according to UNE-EN 12165.

- Brass manual closing plug according to UNE-EN 12165.

- Purge system by means of buoy.

- Float construction in PP (MOPLEN).

- Spring in stainless steel AISI 302.

- Silicone seals.

- Male threaded end according to ISO 228/1.

- Maximum working pressure 10 bar.

- Maximum working temperature 160 ºC.

- Maximum transient temperature 180 ºC.
