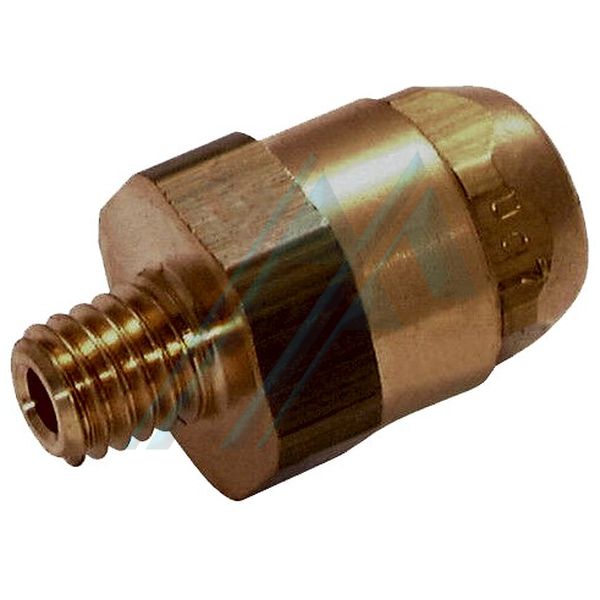

Connection of a tube on the axis of a thread. Screwed from the outside. Very robust design with double O-ring to ensure tightness. Manual instantaneous connection and disconnection with the help of a spanner to ensure tube tightness.
Tested and dated one by one to ensure quality and reliability.
TECHNICAL SPECIFICATIONS
Maximum operating pressure: 60 bar / 6 Mpa / 870 psi.
Operating temperature: -40 to 120 ° C / -40 to 248 ° F / 233 to 393 ° K.
Body: Brass.
Gaskets: NBR.
Caliper: Brass.

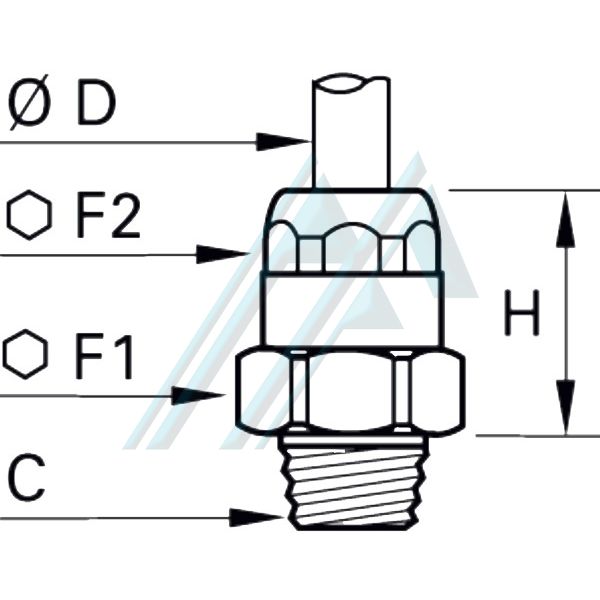

| REFERENCE | Ø D (MM) | C | F1 (MM) | F2 (MM) | H (MM) |
| 61050410 | 4 | R1 / 8 | 13 | eleven | 14.5 |
| 61051413 | 4 | R1 / 4 | 14 | eleven | 12.5 |
| 60150452 | 4 | M6x1 | 13 | eleven | 16.5 |
| 61050456 | 4 | M8x1 | 13 | eleven | 14.5 |
| 61050457 | 4 | M8x1.25 | 13 | eleven | 14.5 |
| 61050460 | 4 | M10x1 | 13 | eleven | 14.5 |
| 61050610 | 6 | R1 / 8 | 17 | 14 | 17.5 |
| 61050613 | 6 | R1 / 4 | 17 | 14 | 16.5 |
| 61050660 | 6 | M10x1 | 17 | 14 | 16.5 |
| 61050865 | 8 | M12x1 | 19 | twenty-one | 24 |
| 61051071 | 10 | M14x1.5 | 22 | 24 | 26 |
