Availability : Bajo pedido, normalmente enviado en
VDLER150

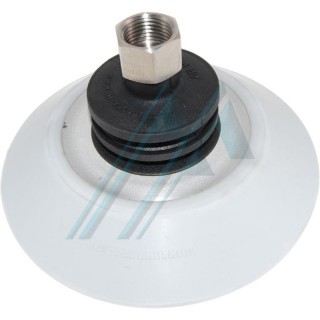

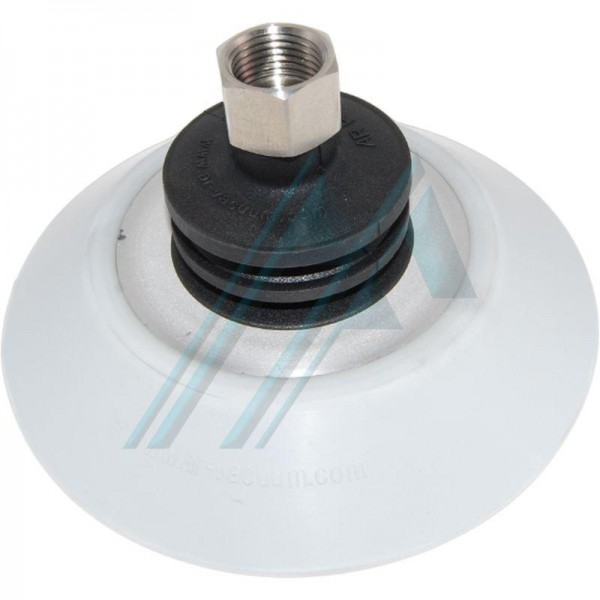

- Vacuum cup Ø 150 mm.
- Material Nitrile rubber.
- Ø Resting 150 mm.
- Working Ø 157 mm.
- Minimum bending radius 336 mm.
- Maximum stroke 8 mm.
- Force at -0,4 bar [Kgf] 53.
- Force at -0,6 bar [Kgf] 74.
- Force at -0.8 bar [Kgf] 97.
- Force at -0.9 bar [Kgf] 106.
- Suction cup suitable for Slightly curved surfaces, Smooth surfaces, Vertical handling, High load, High precision grip.
- AdvantagesDouble lip, non-skid pads.
- Female ball joint thread 1/2''.
- Female compensating spring.
The prices shown on the website do not include VAT
The shipping costs are calculated automatically in the cart according to the weight of the product and the place of delivery
