HID122032
Adapter male JIC thread 1"5/8 to male thread 1"7/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
25,88 €
Adapter male JIC thread 1"5/8 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
18,17 €
Adapter male JIC thread 1"5/8 to male thread 1"5/16 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
23,08 €
Adapter male JIC thread 1"5/16 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
52,17 €
90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €
SELLING PRICE PER METER: 1 UNIT = 1 METER
Availability : En stock, normalmente enviado en un día laboral
HID122032

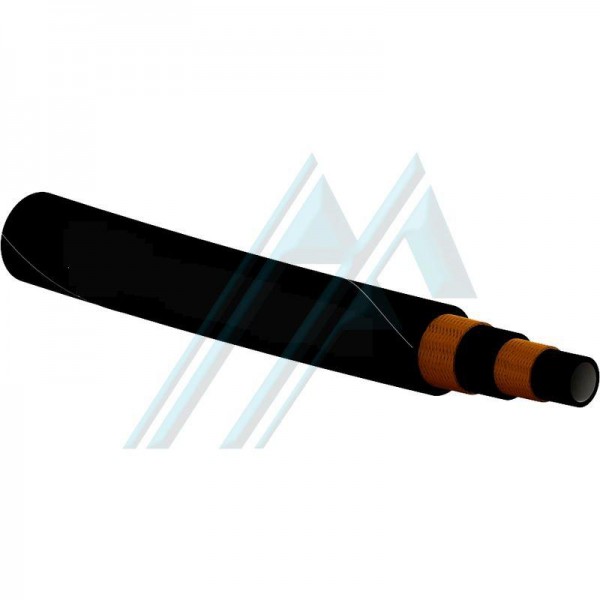

- Reinforced medium pressure hydraulic hose, double textile braiding
- According to ISO 4079 type 3 / DIN EN 854 type 3TE / SAE J517 type SAE 100R3
- Inner tube: Seamless oil-resistant synthetic rubber
- Reinforcement: 2 high-strength synthetic fiber braids
- Outer tube: black, oil, weather and abrasion resistant synthetic rubber, oil, weather and abrasion resistant
- Safety factor: 4:1
- Application: petroleum-based hydraulic fluids
- Temperature range: - 40ºC (- 40ºF) + 100ºC (+ 212ºF) max. recommended temperature for hydraulics.
- Recommended temperature for air: + 50ºC (+ 122ºF).
- Inner diameter Ø 50,8 mm.
- Outer diameter Ø 62,3 mm.
- Working pressure 35 Bar.
- Burst pressure 80 Bar.
