SALES PRICE PER METER: 1 UNIT = 1 METER
Availability : En stock, normalmente enviado en un día laboral
HID103505
Type: Inline connection blockThread: 1/4"Compatible with: HAWE CDK 3Max pressure: up to 500 bar (depending on valve)Max flow: up to 22 l/min (CDK 3)
106,86 €
PACK KYLE press TUBOMATIC H47PM OR+P (max Ø 46 mm) with fittings and hose
PACK KYLE composed by press TUBH47PM (max Ø 46 mm) with fittings and hose.
1 567,60 €
Availability : En stock, normalmente enviado en un día laboral
HID103505

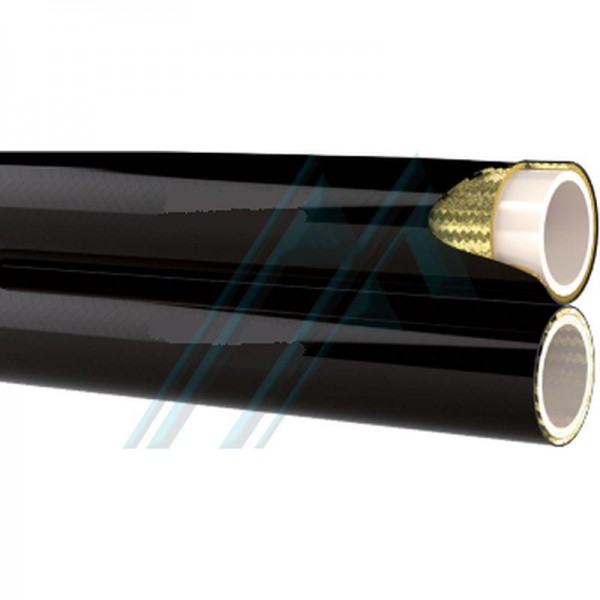

- Two-tube or double thermoplastic hose with a metal mesh.
- Constructed with an inner tube of polyester elastomer reinforced with a metal mesh and its cover is made of black polyurethane, which makes it resistant to abrasion.
- Safety factor 4:1
- Inner diameter: Ø 8 mm.
- External diameter: Ø 14 mm.
- Working pressure: 240 Bar.
- Working temperature: From -40° C to +100° C, limited to +70° C for air and aqueous solution fluids.
- Application: petroleum-based hydraulic fluids.
The prices shown on the website do not include VAT
The shipping costs are calculated automatically in the cart according to the weight of the product and the place of delivery
