Type: Inline connection blockThread: 1/4"Compatible with: HAWE CDK 3Max pressure: up to 500 bar (depending on valve)Max flow: up to 22 l/min (CDK 3)
106,86 €
PACK KYLE press TUBOMATIC H47PM OR+P (max Ø 46 mm) with fittings and hose
PACK KYLE composed by press TUBH47PM (max Ø 46 mm) with fittings and hose.
1 567,60 €
PACK KENNY press TUBOMATIC H47E OR+P (max Ø 46 mm) with fittings and hose
PACK KENNY composed by press TUBH47E (max Ø 46 mm) with fittings and hose.
1 567,60 €
Racor T/L-MF JIC/BSPP 1"1/16-3/4"
13,70 €
188,42 €
Conceived for the transfer of diesel (diesel), its use is not recommended for the transfer of other liquids.
Suitable for use in agriculture, construction, public works and industry.
Availability : En stock, normalmente enviado en un día laboral

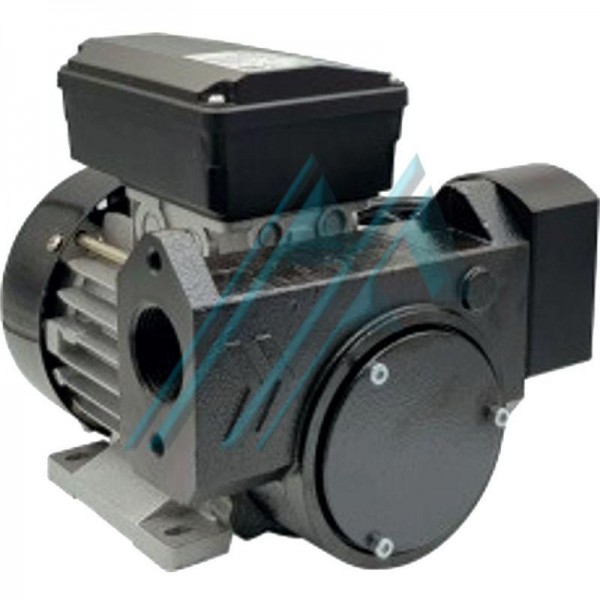

IRON220
• Self-priming-self-priming.
• Self-adjusting vane eccentric.
• Equipped with a recirculation by-pass system.
• Impulsion: 2.7 m.
• Aspiration: 30 m.
• Suction with primed circuit: 5 m.
• Flow with free outlet: 50 l / min.
• Consumption: 1.2-2 A.
• Motor: 0.25 kW 230 VAC 50/60 Hz single-phase self-ventilated with thermal protector.
• Operation: Continuous S1.
• IP-55 protection.
• 3000 rpm.
• Connection by threads: H1 "(BSP) and flanges.
• Incorporates a cleanable 350 µm (micron) steel filter.
• Illuminated ON / OFF switch with IP-55 protection.
• 3 m of electric cable with approved plug.
• Anti-rust treatment.
