Availability : En stock, normalmente enviado en un día laboral
Immediately available
DT11250

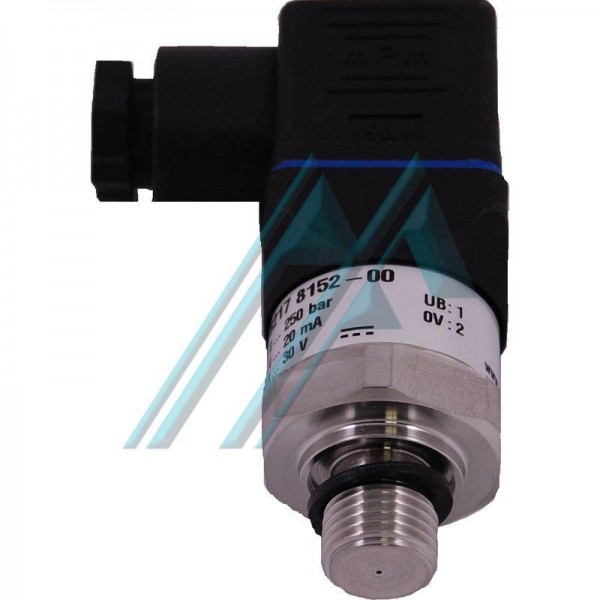

Designation: Pressure transducer.
Pressure regulation range: 0...250 Bar.
Output: 4...20 mAh.
Pressure connection: G 1/4 A according to DIN 3852 E, with NBR seal.
Materials in contact: Stainless steel (specification on 13-8 PH and 316 L).
Housing materials: Stainless steel and plastic.
Electrical connection: By connector according to EN 175 301-803 A, max. 1.5 mm2 inside diameter 6-8 mm.
Approximate weight: 10 g.
Type of protection: IEC 60529.
IP 65 (IP 54 without socket).
Ambient temperature: -30° ... +100°C (valid also for storage).
Medium temperature: -30° ... +100°C.
Electromagnetic compatibility (EMC): Interference emission and interference resistance according to EN 61326 in accordance with EU directive 89/336 EWG (limit value class B).
Vibration resistance according to IEC 60068-2-6.
Shock resistance according to IEC 60068-2-27 500 g.
ROHS conformity: Yes.
