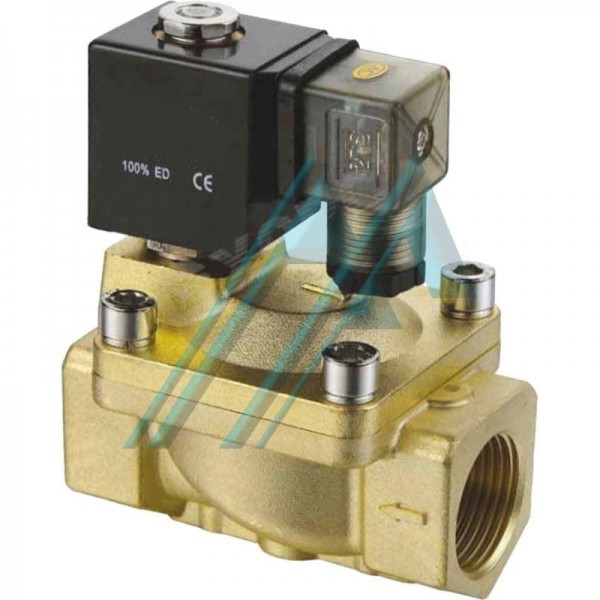

Solenoid valve: 2 ways 2 positions.
Fluid passage: Ø 38 mm.
Thread: 1 "1/2 BSP.
Body Material: Brass.
Gasket: NBR (Nitrile).
Suitable for: Water, oil and air.
Working Temperature: -5 ° + 80 °.
IP 65 protection.
Voltage +/- 10%.
Internal pilot: Minimum working pressure 0.5 Bar.
Normally open.
Work pressure:
Water: 0.5 - 10 Bar.
Compressed air: 0.5 - 10 Bar.
Oil: 0.5 - 10 Bar.
Maximum pressure: 15 Bar.
