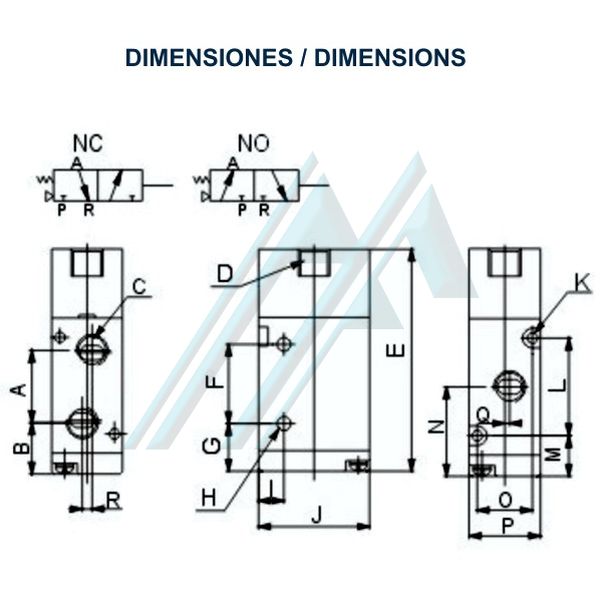

DIMENSIONS (See image)
TO | B | C | D | AND | F | G | H | I | J | K | L | M | N | OR | P | Q | R |
22.5 | 16 | 3-G1 / 4 " | G1 / 8 " | 70 | 25 | fifteen | 2-Ø3.3 | 8 | 35 | 2-Ø3.3 | 30 | 12.5 | 27.5 | 17 | 22 | 1.5 | 3 |
SPECS
Positions and ways (normally open / NO): 2 positions, 3 ways NO.
Working medium: 40 Micron filtered air.
Movement pattern: Inner guide type.
Working pressure: 0.15 - 0.8 MPa.
Maximum resistance pressure: 1.2 MPa.
Operating temperature: 5 ~ 50 ° C.
Voltage range: ± 10%
AC consumption: 2.5 VA DC: 3 W.
Insulation and protection: IP65.
Electrical entry: Connector or cable type.
Maximum frequency of action: 5 cycles / second.
Response time: 0.05 seconds.
