Adapter male JIC thread 1"5/8 to male thread 1"7/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
25,88 €
Adapter male JIC thread 1"5/8 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
18,17 €
Adapter male JIC thread 1"5/8 to male thread 1"5/16 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
23,08 €
Adapter male JIC thread 1"5/16 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
52,17 €
90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €

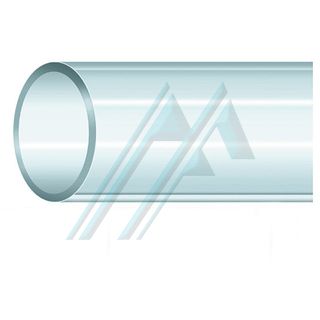

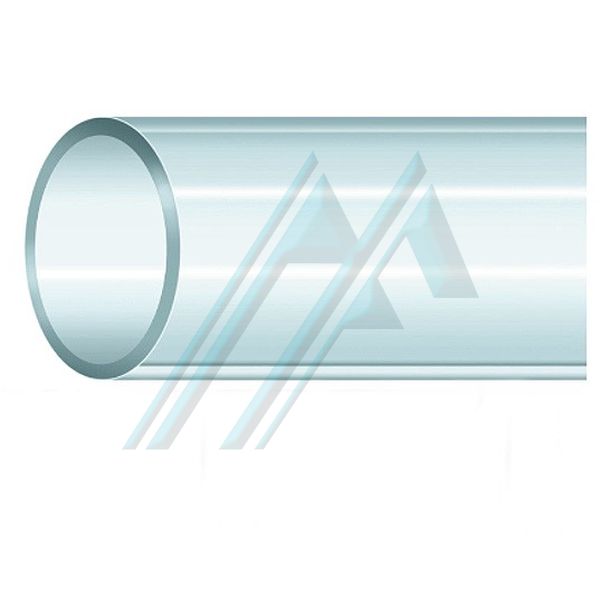

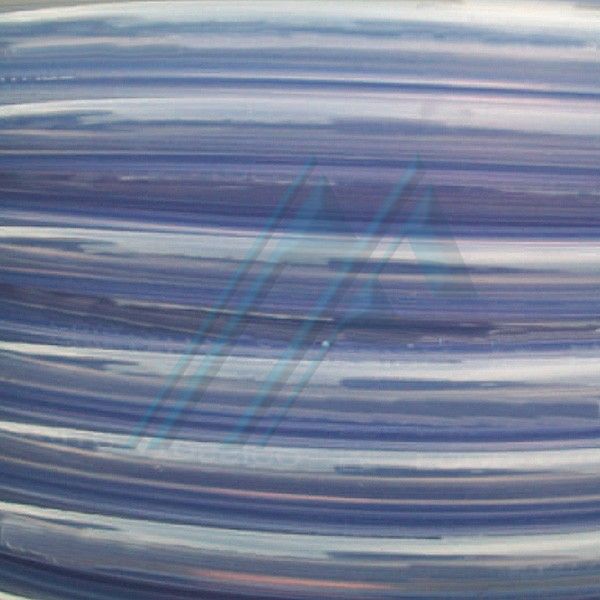

APPLICATIONS:
Ideal for the transport of liquids, air and mild chemicals. Used as a level indicator in industrial machinery
ID:
Translucent
TEMPERATURE RANGE:
- 5º C to + 60º C.
RULE:
Standard DM 21/3/1973 and subsequent modifications.
REFERENCE | OR INT. - EXT. | WORK PRESSURE (Pub) | BREAK PRESSURE (Pub) |
GLASS4 | 4 x 6 | - | - |
GLASS5 | 5 x 8 | - | - |
GLASS6 | 6 x 8 | - | - |
GLASS7 | 7x10 | - | - |
GLASS8 | 8 x 12 | - | - |
CRYSTAL10 | 10 x 14 | - | - |
GLASS12 | 12 x 18 | - | - |
GLASS14 | 14 x 18 | - | - |
GLASS15 | 15 x 19 | - | - |
GLASS18 | 18 x 23 | - | - |
GLASS19 | 19 x 27 | - | - |
GLASS20 | 20 x 25 | - | - |
GLASS25 | 25 x 31 | - | - |
CRYSTAL30 | 30 x 37 | - | - |
GLASS35 | 35 x 43 | - | - |
GLASS40 | 40 x 50 | - | - |
