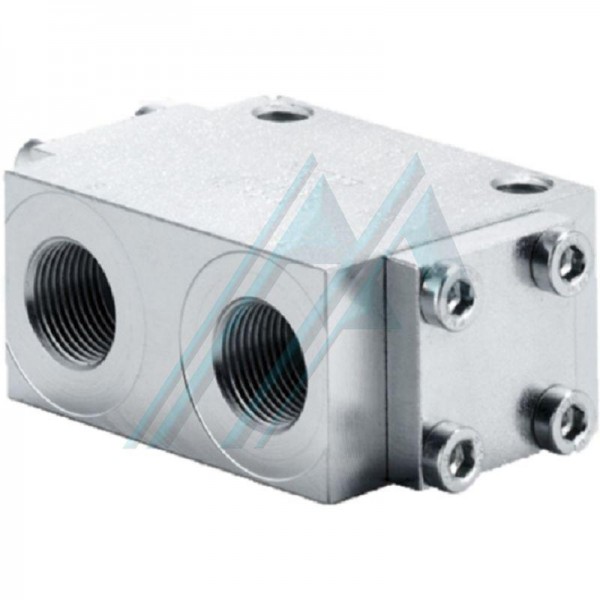

Flow divider tq 22-a 2.3

Technical data sheet

.

- Flow dividers, also called quantity dividers, belong to the group of flow valves.

- They divide or add a total flow evenly or in a ratio of

division.

- The TQ type flow divider is an economical solution for simple dividing tasks due to its simple construction, for example when two cylinders supplied by one pump and loaded indiscriminately need to be moved simultaneously without reciprocal influence.

- It is used in mobile hydraulic systems and industrial hydraulic systems.

Properties and advantages:

- Maximum flow rate 70 l/min.

- Flow rate 30 l/min.

- Max pressure 350 Bar.

- 3/8" inlet thread.

- 3/8" output threads.
