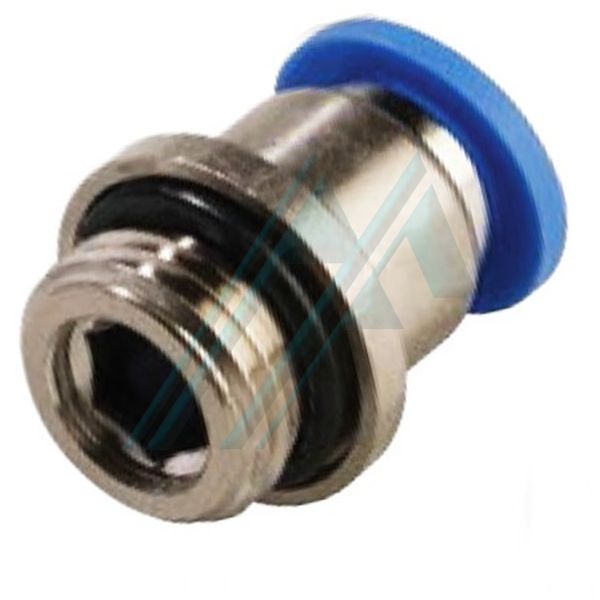

Lightweight, compact and high resistance push-in fittings for polyamide and polyurethane tubing . Cylindrical thread.
Availability : In stock, usually shipped within one business day
Boquilla de engrase con un mango de sujeccion 1/8"
- Enchufe rápido para engrasadores hidráulicos.- Presión de servicio 250 Bar.- Rosca hembra 1/8".- Doble mango de sujeción. - Presionar la manilla para fijar.- Tamaño: 9 x 5 cm.- Material acero.
14,40 €
16,35 €
16,60 €
30,75 €
13,90 €
21,09 €
12,45 €
21,64 €
Lightweight, compact and high resistance push-in fittings for polyamide and polyurethane tubing . Cylindrical thread.
Availability : In stock, usually shipped within one business day
OR External diameter of the tube | Connection thread | ||||
M5 | M6 | 0 1 | 02 | 03 | 04 |
M5x0.8 | M6x1 | R-1/8 " | R-1/4 " | R-3/8 " | R-1/2 " |
CHARACTERISTICS:
- Lightweight and high strength body: tenopolymer composite with fiberglass.
- More compact: reduction in size but without restriction of passage or decrease in effective flow.
- Maximum working pressure: 20 bar.
- Temperature: from -20 ° C to + 80 ° C.
- Free of silicones and oils in the assembly.
- Meets ROHS regulations on environmental protection.
- Rock parts: nickel-plated brass.
- Great ease of connection: Clamping system.
- Easy disconnection: Exclusive button.
- Tefloned on the conical male rocks.
- Joint cylindrical thread OR - NBR.
- Adjustable L and T threaded models.
- Main applications: Compressed air-vacuum.
- Stainless steel multi-grip pliers: Optimum clamping to the tube.
- Exclusive internal collar with maximum tube-fitting sealing.
- Vacuum pressure: -750 mm Hg.
62,08 €
14,19 €
20,27 €
69,37 €
The prices shown on the website do not include VAT
The shipping costs are calculated automatically in the cart according to the weight of the product and the place of delivery
