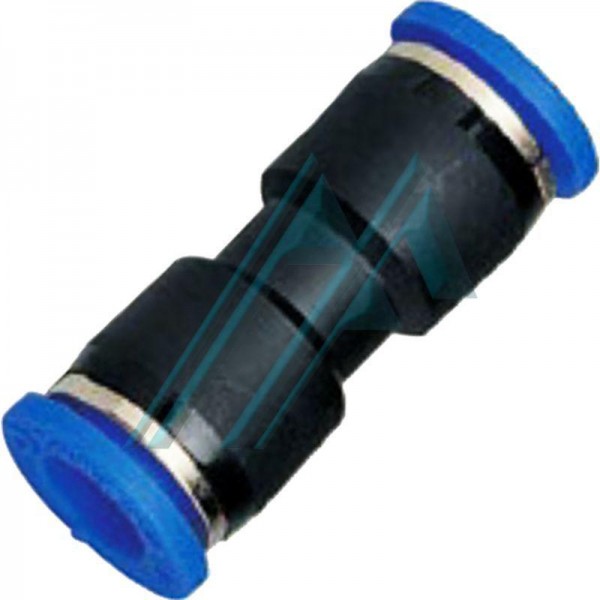

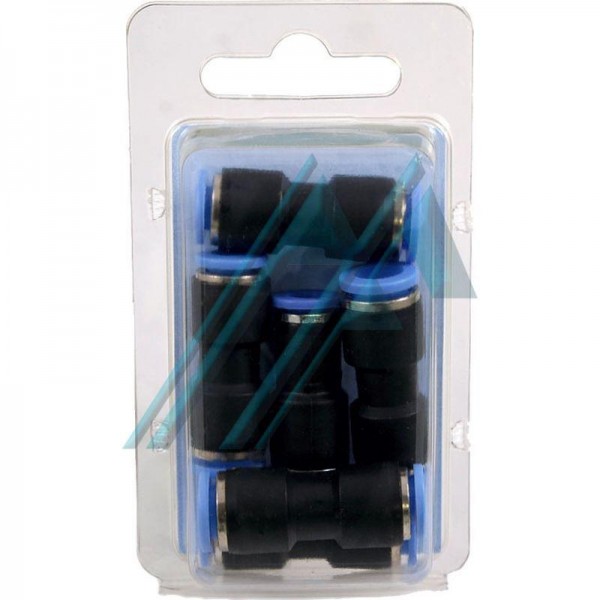

Blister PUC push-in fitting union tube - tube Ø 10

FEATURES:

Light and high resistance body composed of tenopolymer with fiberglass.

Smaller size without passage restriction or decrease in effective flow.

Maximum working pressure: 20 bar.

Temperature: From -20°C to +80°C.

Without silicones and oils in the assembly.

Complies with ROHS regulations on environmental protection.

Nickel-plated brass threaded parts.

Clamping connection system.

Exclusive push-button disconnection system.

Teflon plated on the tapered male threads.

Joint cylindrical thread OR - NBR.

Adjustable L and T threaded models.

Light, compact and ergonomic.

Its main applications: compressed-vacuum air.

Stainless steel multi-grip clamp for optimal clamping to the tube.

Exclusive internal collar with maximum tube and fitting tightness.

Vacuum pressure: -750mmHg.
