90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 6 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 6 outside.- Peasda series.- Material forged steel.- Bichromated anti rust treatment.
5,13 €
90° elbow threaded nut M-12X150 to hydraulic pipe Ø 6 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-12X150.- For hydraulic pipe Ø 6 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
4,63 €
90° elbow threaded nut M-24X150 to hydraulic pipe Ø 16 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-24X150.- For hydraulic pipe Ø 16 outside.- Heavy series.- Material forged steel.- Bichromated anti-oxidation treatment.
11,50 €
90° elbow threaded nut M-22X150 to hydraulic pipe Ø 15 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-22X150.- For hydraulic pipe Ø 15 outside.- Light series.- Material forged steel.- Bichromated antioxide treatment.
7,83 €
CHARACTERISTICS
Good mechanical properties.
Excellent resistance to fats and oils.
Excellent resistance to aliphatic hydrocarbons.
Good resistance to abrasion.
APPLICATIONS
For water: Good.
For oils: Good.
For acids: Regular.
For bases: Good.
For ozone: Not applicable.
For gasoline: Excellent.

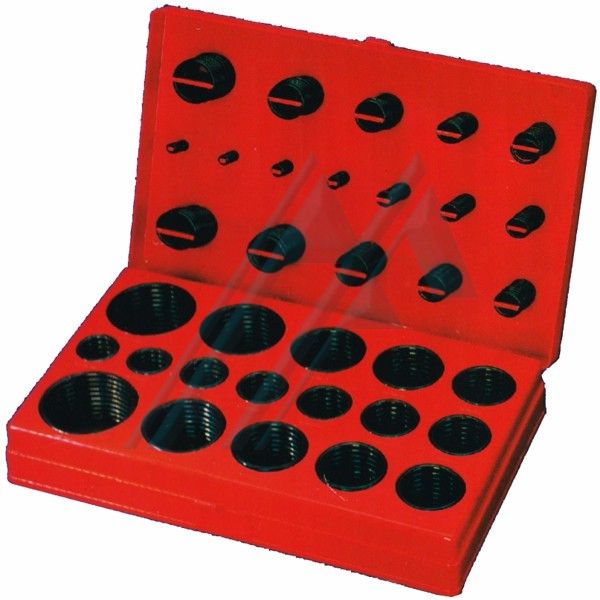

The O-ring kit includes the following sizes:
The dimensions of the O-ring are determined by the inside diameter and the thickness.
DIMENSIONS | QUANTITY | |
Ø INTERIOR | THICKNESS | Units |
0.11 | 0.07 | twenty |
0.14 | 0.07 | twenty |
0.17 | 0.07 | twenty |
0.20 | 0.07 | twenty |
0.23 | 0.07 | twenty |
0.30 | 0.07 | twenty |
0.36 | 0.07 | twenty |
0.36 | 0.10 | 13 |
0.42 | 0.10 | 13 |
0.48 | 0.10 | 13 |
0.54 | 0.10 | 13 |
0.61 | 0.10 | 13 |
0.67 | 0.10 | 13 |
0.73 | 0.10 | 13 |
0.73 | 0.13 | 10 |
0.79 | 0.13 | 10 |
0.85 | 0.13 | 10 |
0.92 | 0.13 | 10 |
0.98 | 0.13 | 10 |
1.04 | 0.13 | 10 |
1.10 | 0.13 | 10 |
1.17 | 0.13 | 10 |
1.23 | 0.13 | 10 |
1.29 | 0.13 | 10 |
1.35 | 0.13 | 10 |
1.42 | 0.13 | 10 |
1.48 | 0.13 | 10 |
1.47 | 0.21 | 7 |
1.60 | 0.21 | 7 |
1.72 | 0.21 | 7 |
