Electroválvula para aire comprimido 5 vías 3 posiciones
S9581-RFE
390,63 €
- Motor-pump coupling.- Maximum Shaft Diameter 25 mm.- Type Star 75 X 16.- Inside Diameter Star 31 mm.- Mounts star A75/16.- Maximum Torque 16,8 kgm.- Maximum Revolutions. 7000.- Weight Kgs 0,9.
76,44 €
MW 5/3 c/c 1/4" 90° lever valve
80,82 €
Valve3/2 normally closed thread1/8"
78,75 €
MW pneumatic cylinder ø 80 C-250 D/E
302,10 €
Inline flow divider tq 33-A 3 HAWE
- Online flow divider. - Flow rate 45 l/min. - 1/2" female thread. - Carbon steel material.
432,25 €
- With decompression. - D 5116 (02-2016-1.1). - Mounting on base plate not included. - Service pressure pmax: 500 bar. - Control flow Qmax: 2 l/min.
437,20 €
Male conical fitting 1/4 "pipe Ø 4 x 6
Nickel-plated brass quick connector. Swivel Tapered BSP Male Threads. Tube diameter: 4 x 6. 1/4 "thread.
2,20 €

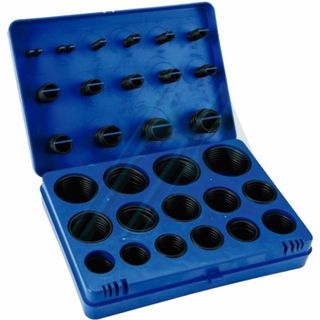

DIMENSIONS | QUANTITY | ||
Ø INTERIOR | Ø OUTSIDE | THICKNESS | KIT |
2.8 | 6.6 | 1.9 | twenty |
3.8 | 7.6 | 1.9 | twenty |
4.8 | 8.6 | 1.9 | twenty |
5.8 | 9.6 | 1.9 | twenty |
6.8 | 10.6 | 1.9 | twenty |
7.8 | 11.6 | 1.9 | twenty |
8.8 | 12.6 | 1.9 | twenty |
9.8 | 14.6 | 2.4 | 13 |
10.8 | 15.6 | 2.4 | 13 |
11.8 | 16.6 | 2.4 | 13 |
13.8 | 18.6 | 2.4 | 13 |
15.8 | 20.6 | 2.4 | 13 |
17.8 | 22.6 | 2.4 | 13 |
19.8 | 24.6 | 2.4 | 13 |
20.0 | 26.0 | 3.0 | 10 |
22.0 | 28.0 | 3.0 | 10 |
22.1 | 29.1 | 3.5 | 10 |
24.4 | 30.6 | 3.1 | 10 |
24.7 | 31.7 | 3.5 | 10 |
25.7 | 32.7 | 3.5 | 10 |
29.4 | 35.6 | 3.1 | 10 |
29.7 | 36.7 | 3.5 | 10 |
31.7 | 38.7 | 3.5 | 10 |
33.7 | 40.7 | 3.5 | 10 |
34.4 | 40.6 | 3.1 | 10 |
35.7 | 42.7 | 3.5 | 10 |
39.4 | 45.6 | 3.1 | 10 |
39.7 | 46.7 | 3.5 | 10 |
44.4 | 50.6 | 3.1 | eleven |
47.7 | 54.7 | 3.5 | 10 |
