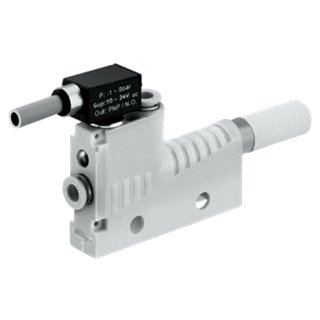

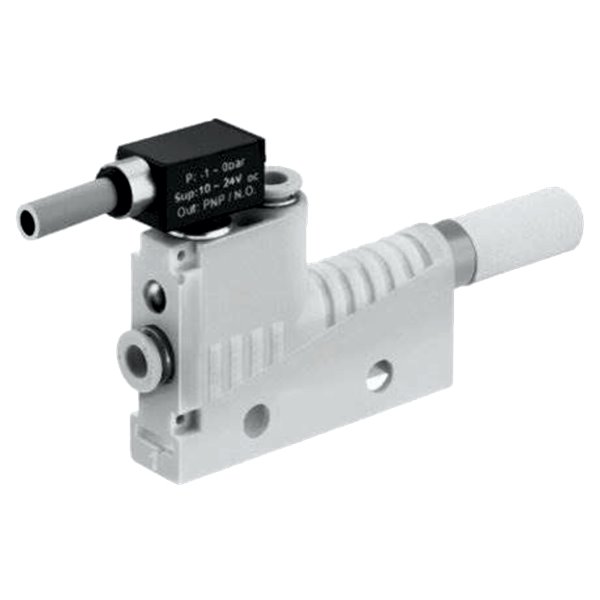

Rexroth Boch Vacuum Ejector Type EBS-PT R412007459

Type: Ejector
Ambient temperatures min. / max .: + 0 ° C / + 50 ° C.
Minimum / maximum temperature of the medium: + 0 ° C / + 50 ° C.
Min / max operating pressure: 3 bar / 6 bar.
Fluid: Compressed air.
Maximum particle size: 5 μm.
Oil content in compressed air: 0 mg / m³ - 1 mg / m³.
Protection class: IP40.
Screen range: LED.

Hysteresis: <0.02 bar.
Repeatability in% (of the final value): ± 1%.
Operating voltage: DC 24 V.
DC voltage tolerance: -20% / + 10%.
Switching output current Max .: 60 mA.
Internal consumption: <15 mA.
Indicator: LED.

Materials :

Housing: Polyamide reinforced with fiberglass.
Gasket: Nitrile rubber (NBR).
Mouthpiece: Aluminum.
Release ring: Polyamide.
Silencer: Polyethylene (PE).
