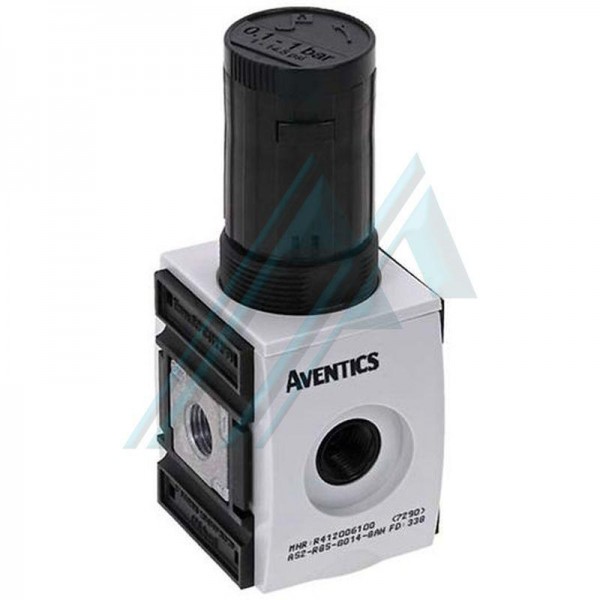

Regulator as2 - 1/4" ref r412006108 reg 0.5-10

Technical data sheet

.

Technical data sheet

.

- Standard pressure regulator.

- Pressure regulating valve.

- Pressure gauge not included.

- Mounting position Any.

- Membrane pressure regulating valve type.

- 1/4" Bsp female inlet and outlet thread.

- Nominal flow rate 2200 l/min.

- Minimum pressure regulation range 0.5 bar.

- Max. pressure regulation range 10 bar.

- Min. operating pressure 0.5 bar.

- Max. operating pressure 16 bar.

- Ambient temperature min.-10º C max 50º C.

- Mechanical drive.

- Fluid Compressed air and neutral gases.

- Housing material: Polyamide.

- Front plate material: acrylonitrile butadiene styrene.

- Gasket material: Acrylonitrile butadiene rubber.

- Threaded bushing material die-cast zinc
