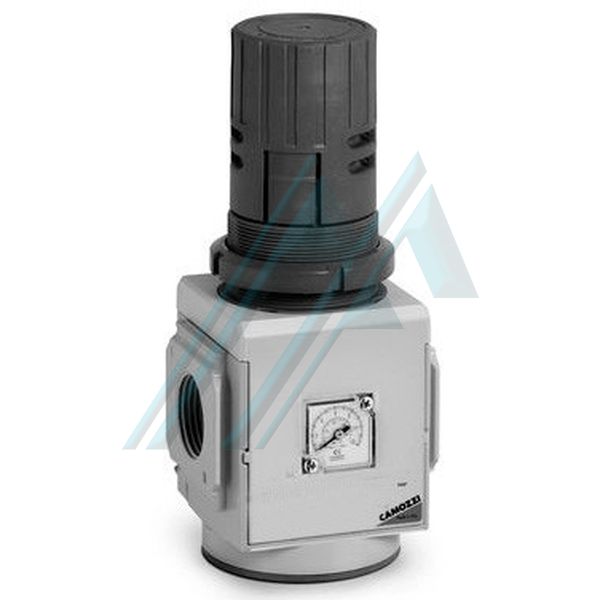

General characteristics:
Construction: modular, compact, diaphragm type
Materials: body: aluminum, cover: polyacetal, valve connection bracket: polyacetal, regulator knob: polyimide, upper spring: galvanized steel, diaphragm: NBR, lower spring: stainless steel, seals: NBR
Connections: MX2: G3 / 8 - G1 / 2 - G3 / 4; MX3: G3 / 4 - G1
Manifold Regulator: G1 / 2 (MX2 only)
Mounting: vertical in line; wall mounting (by means of fasteners); panel mount
Operating temperature: -5 ° C ÷ 50 ° C up to 16 bar (with fluid dew point below 2 ° C at min. Working temperature), 50 ° C ÷ 60 ° C up to 10 bar (with dew point of fluid spray below 2 ° C at min. Working temperature)
Pressure input: 0 ÷ 16 bar
Pressure output: 0.5 ÷ 10 bar (standard); 0 ÷ 4 bar; 0.5 ÷ 7 bar (MX2 only)
Overpressure exhaust (Relieving): with relieving (standard); without relieving
Fluid: compressed air
Pressure gauge: version with integrated pressure gauge (standard); version with G1 / 4 port for pressure gauge (MX3 only); version with G1 / 8 port for pressure gauge (MX2 only)

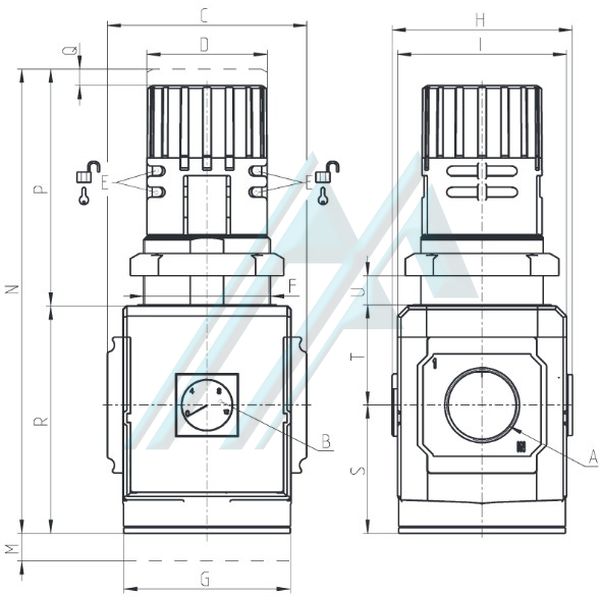

Dimensions:
MODEL | TO | B | C | D | AND | F | G | H | I | M | N | P | Q | R | S | T | OR | Kg |
CMX238R004 | G3 / 8 | 0 ÷ 12 | 70 | Four. Five | Ø4 | M47x1.5 | 70 | 74.5 | 68 | Four. Five | 166 | 78 | 5 | 88 | 50.5 | 37.5 | 0 ÷ 13 | 0.6 |
CMX212R004 | G1 / 2 | 0 ÷ 12 | 70 | Four. Five | Ø4 | M47x1.5 | 70 | 74.5 | 68 | Four. Five | 166 | 78 | 5 | 88 | 50.5 | 37.5 | 0 ÷ 13 | 0.6 |
CMX234R004 | G3 / 4 | 0 ÷ 12 | 70 | Four. Five | Ø4 | M47x1.5 | 70 | 74.5 | 68 | Four. Five | 166 | 78 | 5 | 88 | 50.5 | 37.5 | 0 ÷ 13 | 0.6 |
CMX334R004 | G3 / 4 | 0 ÷ 12 | 89.5 | 54 | Ø4 | M57x1.5 | 75 | 81 | 76 | Four. Five | 206 | 104 | 5 | 102 | 57.5 | 44.5 | 0 ÷ 20 | 1 |
CMX31R004 | G1 | 0 ÷ 12 | 89.5 | 54 | Ø4 | M57x1.5 | 75 | 81 | 76 | Four. Five | 206 | 104 | 5 | 102 | 57.5 | 44.5 | 0 ÷ 20 | 1 |
