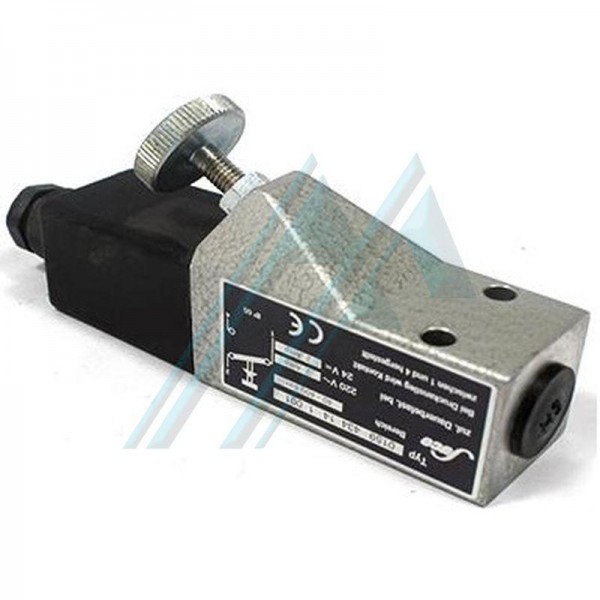

SUCO pressure switch with G 1/4" female thread piston

- SUCO pressure switch.

- Catalog reference 0159434141001.

- Product reference 0159-43414-1-001.

- Regulation range 40-400 bar (±5.0-9.0).

- Maximum pressure 600 bar.

- Aluminum Body.

- NBR membrane / gasket.

Fluids:

- Hydraulic oil, mineral oil, air, nitrogen, etc.

- Temperature range -40°...+100°C.

- G1/4" female thread.

- Maximum voltage 250 V.

- SPDT contacts (switched).

- Connector connection.

- IP65 protection grade.

- Hysteresis Not adjustable.

- Others Regulation steering wheel.

Measures:

- Height [mm] 127

- Diameter [mm] 50

- Weight [gr] 240
