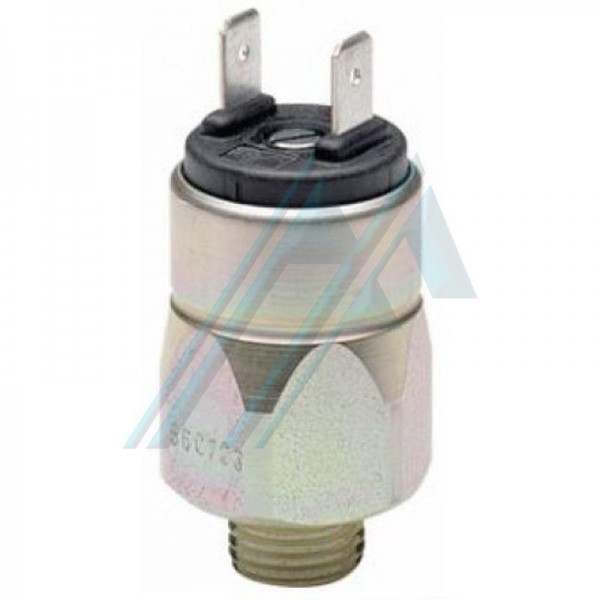

SUCO electric pressure switch G 1/4" external thread

- Suco electric pressure switch.

- Catalog reference 0166407031027.

- Packaging reference 0166-407-03-1-027.

- Regulation range 1-10 bar (±0.5).

- Maximum pressure 300 bar.

- Zinc-plated steel body.

- NBR membrane / gasket.

Fluids:

- Hydraulic oil, mineral oil, air, nitrogen, etc.

- Temperature range -40°...+100°C.

- G1/4 External Thread.

- Maximum voltage 42 V.

- Normally open contacts.

- Flat terminal connection (Faston).

- Hysteresis Not adjustable.

Measures:

- Height [mm] 55.

- Diameter [mm] 27.

- Weight [gr] 90.
