90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 6 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 6 outside.- Peasda series.- Material forged steel.- Bichromated anti rust treatment.
5,13 €
90° elbow threaded nut M-12X150 to hydraulic pipe Ø 6 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-12X150.- For hydraulic pipe Ø 6 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
4,63 €
90° elbow threaded nut M-24X150 to hydraulic pipe Ø 16 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-24X150.- For hydraulic pipe Ø 16 outside.- Heavy series.- Material forged steel.- Bichromated anti-oxidation treatment.
11,50 €
90° elbow threaded nut M-22X150 to hydraulic pipe Ø 15 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-22X150.- For hydraulic pipe Ø 15 outside.- Light series.- Material forged steel.- Bichromated antioxide treatment.
7,83 €
MATERIAL
Carbonitrided and nickel plated steel.
DESCRIPTION

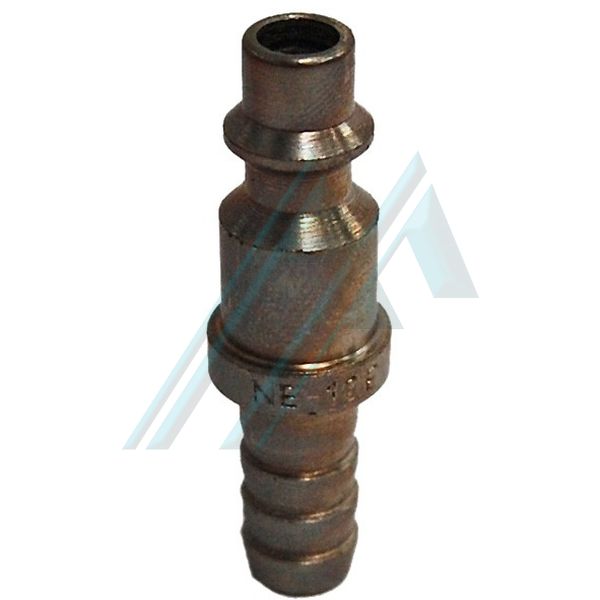

Automatic quick connection according to ISO 6150-B-12 standard.
Easy to use, one-handed connection-disconnection, small size and great robustness.
High flow supply, favoring the performance of the installation.
Patented system.
Availability in free passage.
FEATURES
Recommended working pressure: 0 - 12 bar.
Maximum working pressure: 35 bar.
Flow: 750 l / min. Measurement carried out at a pressure of 6 bar and a pressure drop of 0.5 bar.
APPLICATIONS
Quick connection for general pneumatic applications and compatible fluids. For applications in oxidizing or corrosive environments and in contact with fluids such as air, water, fats, oils, weak acids, etc. Weakly magnetic.
Especially indicated for applications in the chemical, pharmaceutical, food, naval, refineries, industrial machinery, etc.
