Nominal diameter 5.5 mm (23.80 mm²).
R 1/4 "male thread.
Availability : In stock, usually shipped within one business day

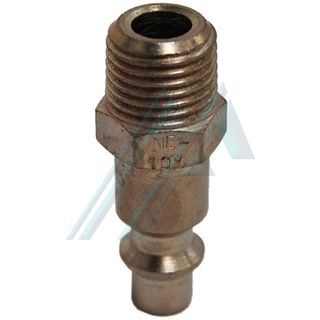

NE-10M
Nominal diameter 5.5 mm (23.80 mm²).
R 1/4 "male thread.
Availability : In stock, usually shipped within one business day
NE-10M
MATERIAL
Carbonitrided and nickel plated steel.
DESCRIPTION
Automatic quick connection according to ISO 6150-B-12 standard.
Easy to use, one-handed connection-disconnection, small size and great robustness.
High flow supply, favoring the performance of the installation.
Patented system.
Availability in free passage.
FEATURES
Recommended working pressure: 0 - 12 bar.
Maximum working pressure: 35 bar.
Flow: 750 l / min. Measurement carried out at a pressure of 6 bar and a pressure drop of 0.5 bar.
APPLICATIONS
Quick connection for general pneumatic applications and compatible fluids. For applications in oxidizing or corrosive environments and in contact with fluids such as air, water, fats, oils, weak acids, etc. Weakly magnetic.
Especially indicated for applications in the chemical, pharmaceutical, food, naval, refineries, industrial machinery, etc.
