Adapter male JIC thread 1"5/8 to male thread 1"7/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
25,88 €
Adapter male JIC thread 1"5/8 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
18,17 €
Adapter male JIC thread 1"5/8 to male thread 1"5/16 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
23,08 €
Adapter male JIC thread 1"5/16 to male thread 1"5/8 UNF
- Closing part JIC cone 37º. - UNF part closure using O-ring. - Carbon steel material. - Dichromate surface treatment.
52,17 €
90° elbow threaded nut M-18X150 to hydraulic pipe Ø 12 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-18X150.- For hydraulic pipe Ø 12 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
7,13 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 10 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 10 outside.- Light series.- Material forged steel.- Bichromated anti rust treatment.
7,67 €
90° elbow threaded nut M-16X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-16X150.- For hydraulic pipe Ø 8 outside.- Heavy series.- Material forged steel.- Bichromated anti rust treatment.
5,75 €
90° elbow threaded nut M-14X150 to hydraulic pipe Ø 8 outside DIN 2353
- 90º elbow nut nut to hydraulic pipe DIN 2353.- Thread nut nut M-14X150.- For hydraulic pipe Ø 8 outside.- Light series.- Material forged steel.- Bichromated anti-oxidation treatment.
5,88 €

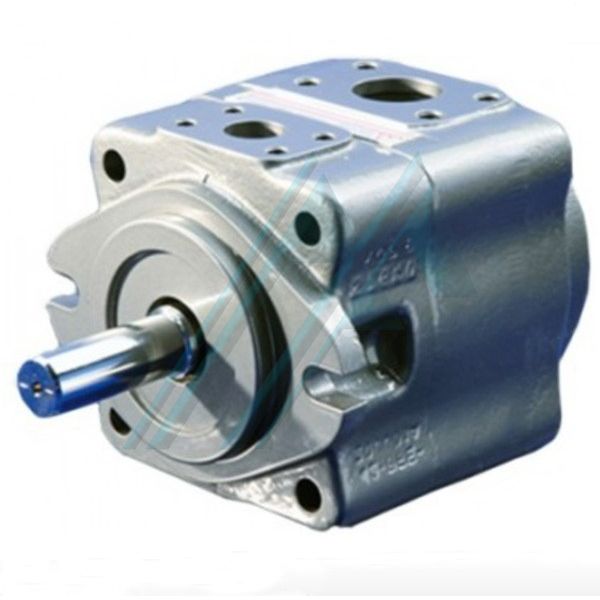

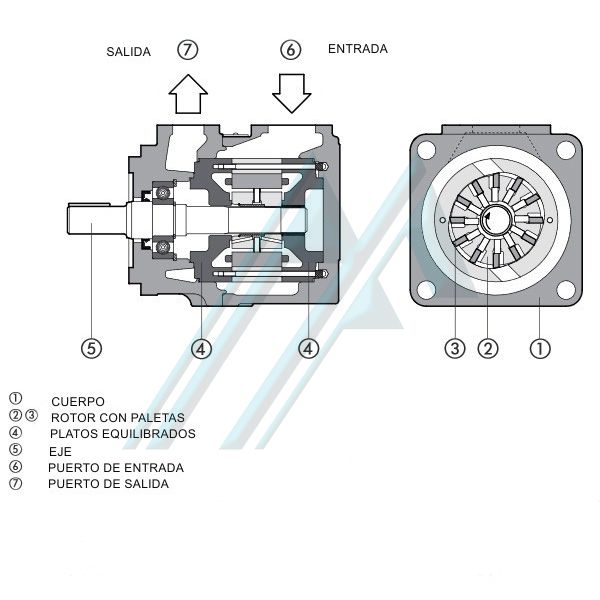

The cartridge design PFE- * 2 is a pump fixed shift of twelve palettes, design of cartridge with balanced hydraulic integral to operations of high pressure and a long service life with further reduction of the noise level compared with PFE- * 1.
These pumps are available as single, multiple or configuration through axle. Mounting flange in accordance with SAE standard J744.

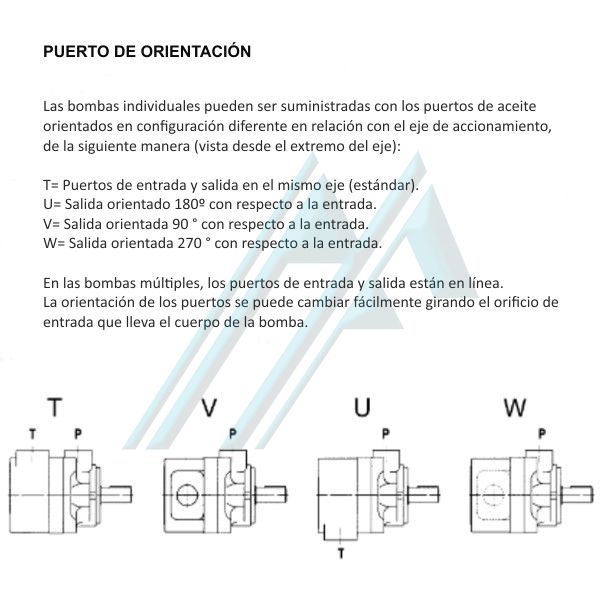

Easy installation of the ports of input and output that sand can be mounted in any of four relative positions.
Easy maintenance dthe cartridge for pumping, can be replaced in a few minutes.
Three sizes with different displacement maximum of up to 36, 85 and 150 cm3 / rev.
Maximum pressures up to 300 bar.
