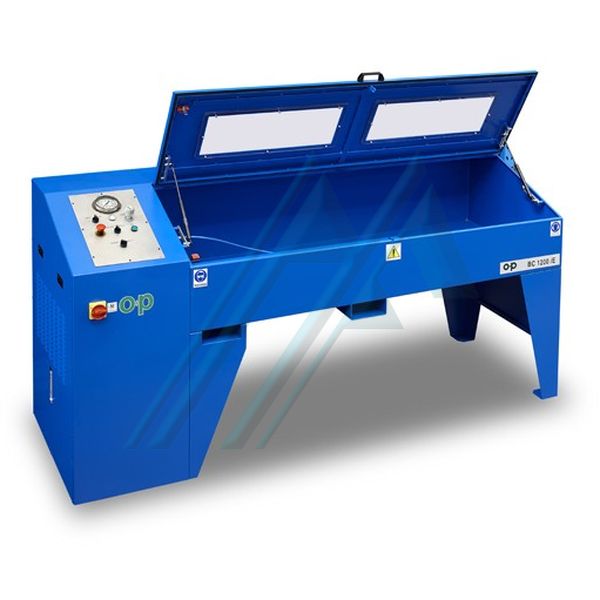

Test bench up to 1200 bar equipped with manual control and hydraulic multiplier.
You can make your inquiries about this product at info@hidraflex.com
Check price and availability
BC1200E
MAIN CHARACTERISTICS:
- Electric power supply.
- Adjustable support based on the diameter of the tube.
TECHNICAL CHARACTERISTICS:
STATIC PRESSURE | 1200 bar (14700 Psi) |
IMPULSE PRESSURE | 1200 Bar (17400 Psi) |
MINIMUM INITIAL PRESSURE | 100 Bar (1450 Psi) |

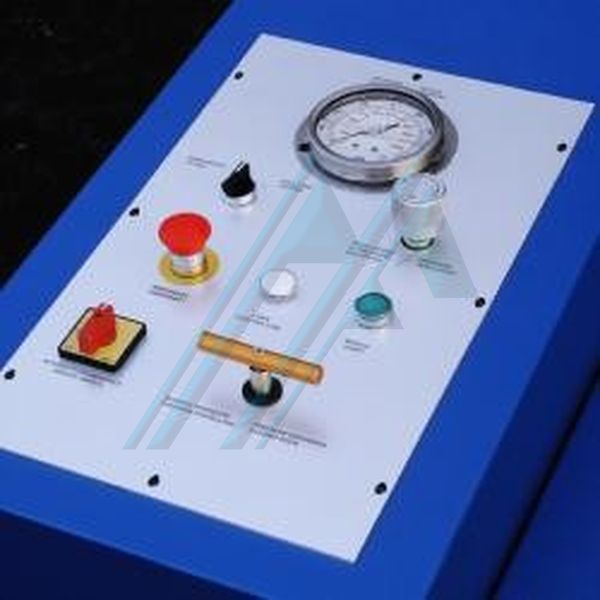

PRESSURE CONTROL | Manual |
TEST PROCEDURE | Manual |
TYPE OF DRIVE | Hydraulic intensifier |
TEST FLUIDS | Oil |
NUMBER OF MANIFOLDS | 2 |
NUMBER OF MANIFOLD CONNECTIONS | Special quick connection |
FILLING SYSTEM | Manual |
FILLING CAPACITY | 17 L/min |
DISCHARGE PRESSURE | Manual |
PRESSURE GAUGE | Analog |
CYCLES/MINUTE | 4 (Ø 3/16" L=2000 mm P=2000 bar) (L=78.800" P=29000 Psi) |
MECHANICAL SAFETY MECHANISM | Manual |
ELECTRICAL SAFETY MECHANISM | Automatic |
STANDARD TEST CHAMBER DIMENSIONS | 2000 x 830 mm (78.740" x 32.677") |
BENCH DIMENSIONS | 2500 x 875 x 1200 mm (98.425" x 34.449" x 47.244") |
TANK | 110 Liters |
STANDARD VOLTAGE | 400 V 50 HZ 3 PH |
WEIGHT WITHOUT OIL | 460 Kg (1.014 Lbs) |
ACCESSORIES | |
SUCTION FILTER | Included |
EXHAUST FILTER | Including |
SPECIAL VOLTAGE | Optional |
