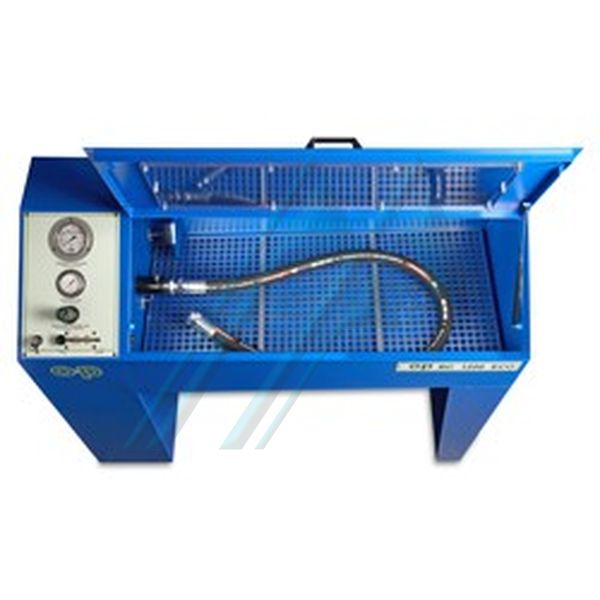

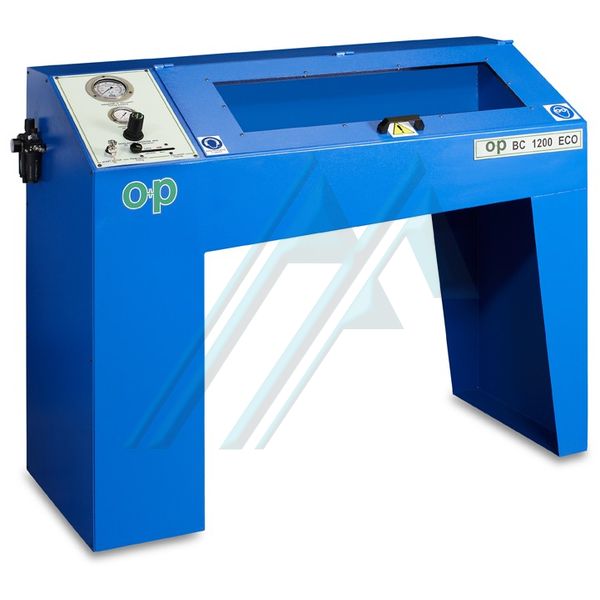

Water test bench up to 1200 bar, small and easy to use, equipped with a quick coupling Ø 1/4" gas, analog pressure gauge for pressure reading and pneumo-hydraulic pump.
Control and discharge pressure, test and liquid filling are done manually.
TECHNICAL FEATURES:
| STATIC PRESSURE | 1200 bar (17400 psi) |
| MIN. PRESSURE INITIAL PRESSURE | 70 bar (1015 psi) |
| PRESSURE CONTROL | manual |
| TEST PROCEDURE | manual |
| DRIVE TYPE | pneumatic intensifier |
| TEST FLUIDS | water |
| NO. OF MANIFOLDS | 1 |
| N° MANIFOLD CONNECTIONS | special quick connection |
| FILLING SYSTEM | manual |
| FILLING CAPACITY | 1,5 L/min |
| DISCHARGE PRESSURE | manual |
| STANDARD TEST CHAMBER DIMENSIONS | 1200x550x250 mm (47.250 "x21.650 "x9.800") |
| BENCH DIMENSIONS | 1500x600x1200 mm ( 59.055 "x23.600 "x47.250") |
| TANK | 30 L |
| WEIGHT WITHOUT WATER | 130 KG (286 lbs) |
| ACCESSORIES | |
| ANTI-SHOCK CONTROL WINDOWS | Including |
| SUCTION FILTER | Including |
| DISCHARGE FILTER | Including |

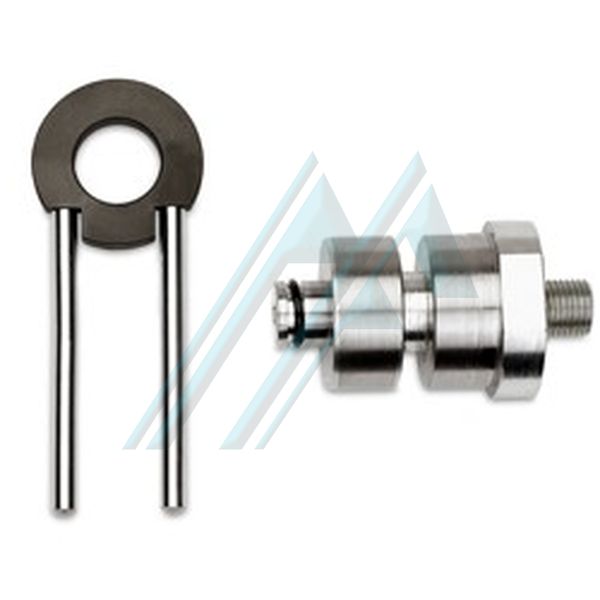

| 1/4" ADAPTER | Included |
| 3/8" - 1/2" - 3/4" - 1" - 1 1/4" - 1 1/2" - 2" ADAPTER | Optional |
