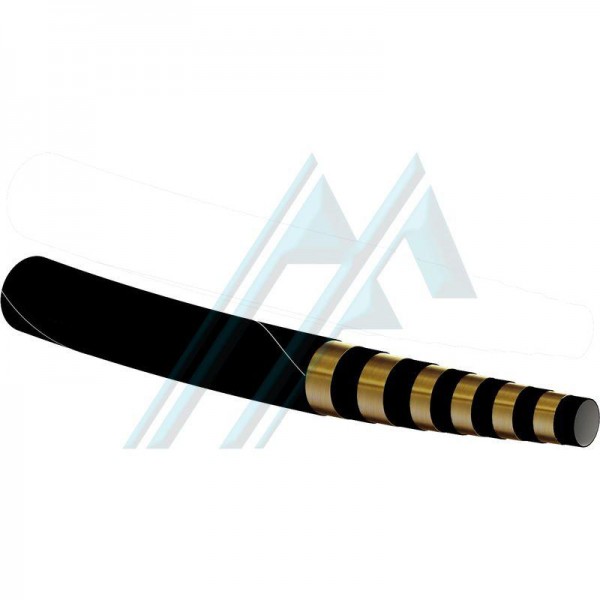

Pipe 6 meshes G-24 R-15 MF-6000-24

Data sheet

.

- Hydraulic hose reinforced with 4 or 6 spirals of very high pressure steel wire

- According to ISO 3862 EN 856 / type R15

- Inner tube Ø 38 mm: seamless oil-resistant synthetic rubber

- Reinforcement: 4 or 6 spirals of high tensile strength steel wire

- Outer tube Ø 59.6 mm: synthetic rubber resistant to abrasion, weather and oil.

- Working pressure 420 Bar.

- Safety factor: 4:1

- Application: petroleum based hydraulic fluids

- Temperature range: - 40°C (-40°F) +100°C (+212°F); Intermittent duty: +120°C (+248°F)

- Max. Recommended temperature for water-based hydraulic fluids: +70°C (+158°F);

- Max. recommended air temperature: +60°C (+140°F)
