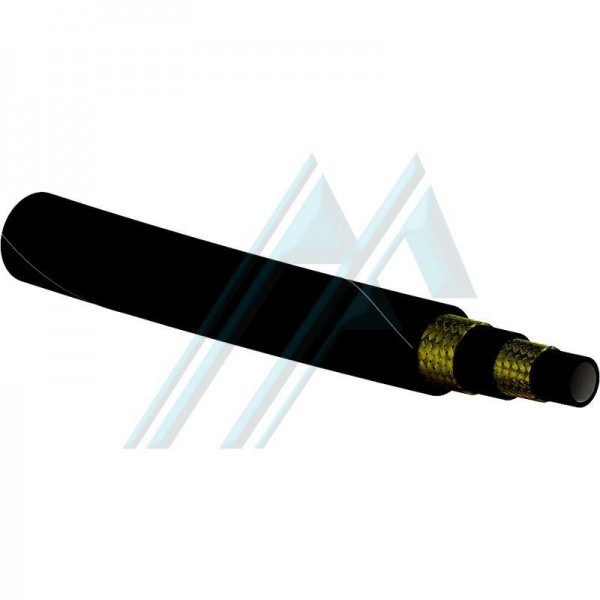

Flexible pipe 1/4" DIN EN 857 2SC

Data sheet

.

- Hydraulic hose reinforced with double braided high-pressure steel

According to ISO 11237-1 type 2SC / DIN EN 857 ISO type 2SC

- Inner tube: seamless oil-resistant synthetic rubber

- Reinforcement: 2 high tensile steel wire braids

- Outer tube: black synthetic rubber, resistant to abrasion, oil and weather

- Safety factor: 4:1

- Application: petroleum based hydraulic fluids

- Temperature range: -40°C (-40°F) +100°C (+212°F); Intermittent duty: +120°C (+248°F)

- Max. temp. Recommended for water-based hydraulic fluids: +70°C (+158°F);

- Max. Recommended air temperature: +60°C (+140°F).

- Inner diameter Ø 6.6 mm.

- External diameter Ø 13 mm.

- Working pressure 400 Bar.

- Burst pressure 1,600 Bar.
