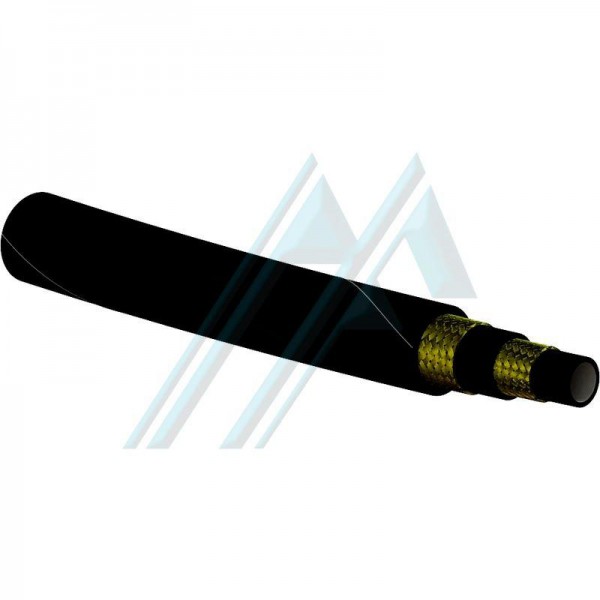

Flexible pipe 1/2" DIN EN 857 2SC

Technical data

.

- Reinforced hydraulic hose with double braided high-pressure steel braiding

According to ISO 11237-1 type 2SC / DIN EN 857 ISO type 2SC

- Inner tube: oil resistant synthetic rubber without welding

- Reinforcement: 2 high tensile steel wire braids

- Outer tube: black, abrasion, oil and weather resistant synthetic rubber

- Safety factor: 4:1

- Application: Petroleum-based hydraulic fluids

- Temperature range: -40°C (-40°F) +100°C (+212°F); Intermittent service: +120°C (+248°F)

- Max. recommended temp. for water-based hydraulic fluids: +70°C (+158°F);

- Max. recommended temperature for air: +60°C (+140°F).

- Internal diameter Ø 12,7 mm.

- Outer diameter Ø 20 mm.

- Working pressure 275 bar.

- Burst pressure 1.100 Bar.
