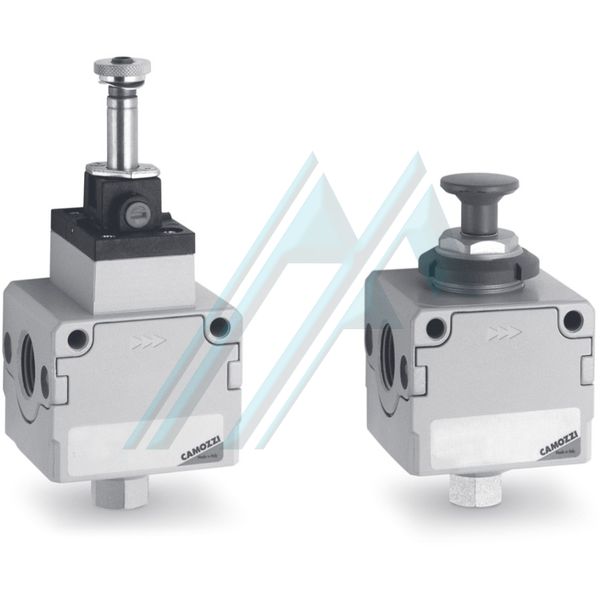

3/2-way shut-off valve MC

The 3-way interception valves can be manually operated, pneumatic or electric, they serve to quickly pressurize and depressurize an installation. Once the installation is unloaded, the manual valve can be put into safety by blocking it with a padlock.

More details...

Availability : On request, usually shipped in 3 weeks

CMC104V16

119,90 €

General characteristics:

Construction type: modular compact, with shutter

Materials: zama, NBR, technopolymer

Threaded connections: G1 / 4

Weight: kg 0,277

Mounting: in line to the wall; in panel manual only

Working temperature: -5 ° C ÷ 50 ° C (with dew point below 2 ° C at min. Working temperature)

Execution: varnished

Working pressure: 2 ÷ 10 bar (in the pneumatic actuation version - 0.8 ÷ 10 bar).

Nominal discharge flow: G1 / 4 1080 Nl / min

Determined flow rates: at 6 bar ∆p = 1 bar

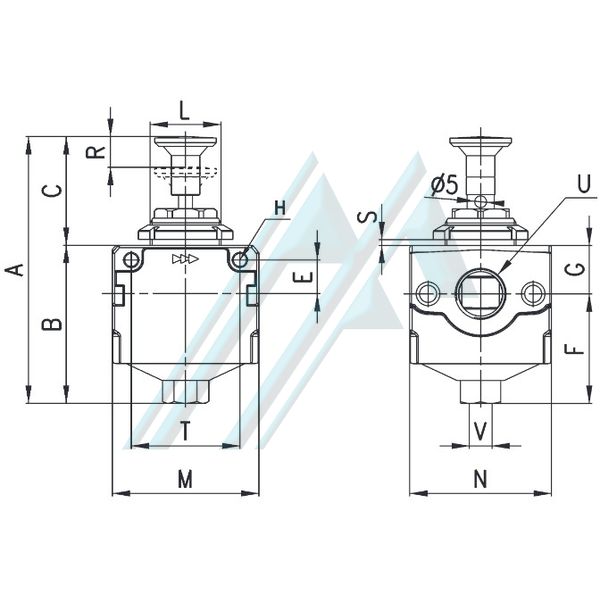

Dimensions:

MODEL TO B AND F G H I L M N T OR V
CMC104V16 120 eleven 38.5 81.5 4.5 22 32 Four. Five Four. Five 35 G1 / 4 G1 / 8 EV10
