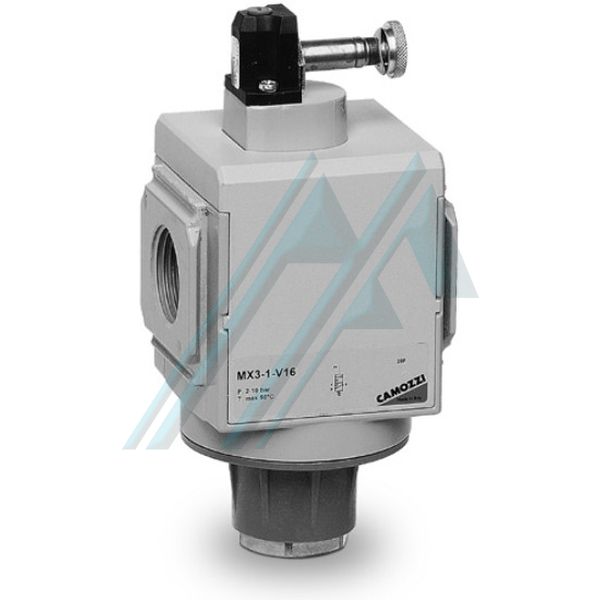

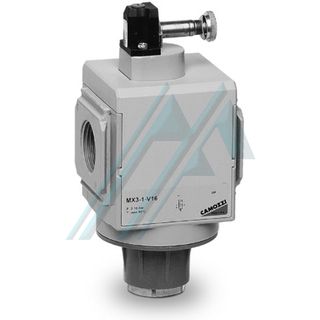

Valves with manual operation are ideal to allow easy access to the FRL group. The system is depressurized upon deactivation of the valve. Electro-pneumatic operated valves are ideal where manual access is difficult, allow maximum flexibility in position, and are designed to pressurize or depressurize pneumatic systems. The integrated manual disconnect ensures safety in case of emergencies.
General characteristics:
Construction: modular, compact, coil type
Connections: MX2: G3 / 8 - G1 / 2 - G3 / 4; MX3: G3 / 4 - G1
Assembly: online; wall mount (via fasteners)
Operating temperature: -5 ° C ÷ 50 ° C up to 16 bar (with dew point below 2 ° C at min. Working temperature); 50 ° C ÷ 60 ° C up to 10 bar (with dew point below 2 ° C at min. Working temperature)
Operating pressure: Manual version: 0.8 ÷ 10 bar; Electro pneumatic version: 2 ÷ 10 bar; Pneumatic or servo-pilot version: 0.8 ÷ 10 bar (with 2 ÷ 10 bar pilot)
Nominal discharge flow: MX2: 6000 Nl / m
6 bar with ∆p = 1 bar MX3: 9200 Nl / m
Fluid: compressed air

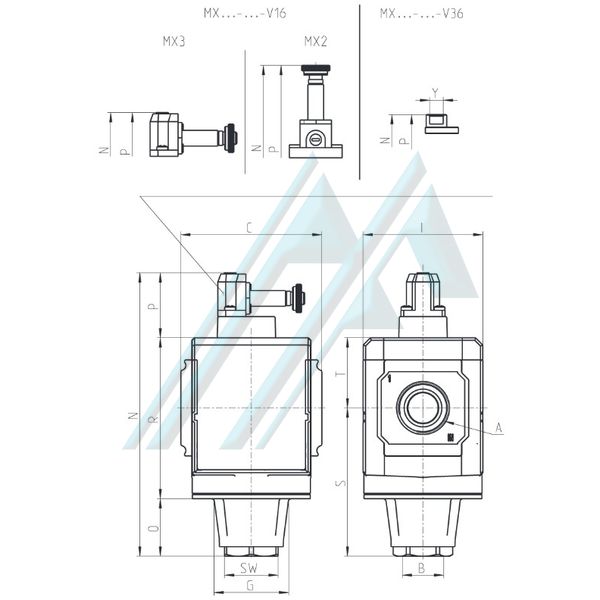

Dimensions:
| MODEL | TO | B | C | G | I | N | OR | P | R | S | SW | T | AND | WEIGHT (Kg) | SYMBOL |
| CMX238V16 | G3 / 8 | G1 / 2 | 70 | 34.5 | 68 | 171 | 13 | 70 | 88 | 63.5 | 3. 4 | 37.5 | 0.5 | EV10 | |
| CMX212V16 | G1 / 2 | G1 / 2 | 70 | 34.5 | 68 | 171 | 13 | 70 | 88 | 63.5 | 3. 4 | 37.5 | 0.5 | EV10 | |
| CMX234V16 | G3 / 4 | G1 / 2 | 70 | 34.5 | 68 | 171 | 13 | 70 | 88 | 63.5 | 3. 4 | 37.5 | 0.5 | EV10 | |
| CMX334V16 | G3 / 4 | G3 / 4 | 89.5 | 48 | 76 | 180.5 | 37 | 41.5 | 102 | 94.5 | 3. 4 | 44.5 | 0.9 | EV10 | |
| CMX31V16 | G1 | G3 / 4 | 89.5 | 48 | 76 | 180.5 | 37 | 41.5 | 102 | 94.5 | 3. 4 | 44.5 | 0.9 | EV10 |
