The progressive opening valve is used to prevent damage to people or things when a pneumatic installation is pressurized The characteristics of this component allow to achieve the pressurization of an installation progressively up to 50% of the programmed pressure, then reaching 100% reaches in a reduced time.
Availability : On request, usually shipped in 3 weeks
CMC104AV
General characteristics:
Design: modular, compact shutter
Materials: zama, NBR, technopolymer
Threaded connections: G1 / 4
Weight: Kg 0.275
Mounting: in line, to wall (in any position)
Working temperature: -5 ° C ÷ 50 ° C at 10 bar (with fluid dew point lower than 2 ° C at min. Working temperature)
Execution: varnished
Working pressure: 2 ÷ 10 bar
Nominal flow (determined at 6 bar with ∆P1): G1 / 4 = 1850 Nl / min

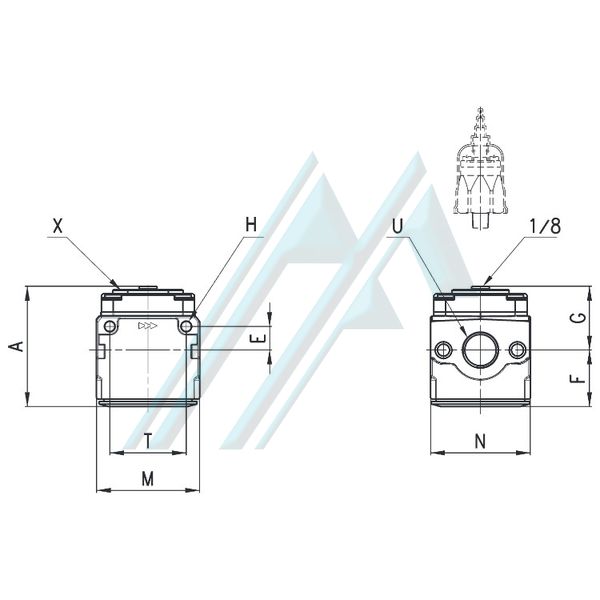

Dimensions:
| MODEL | TO | AND | F | G | H | M | N | T | OR |
| CMC104AV | 59.5 | eleven | 28.5 | 31 | 4.5 | Four. Five | Four. Five | 35 | G1 / 4 |
