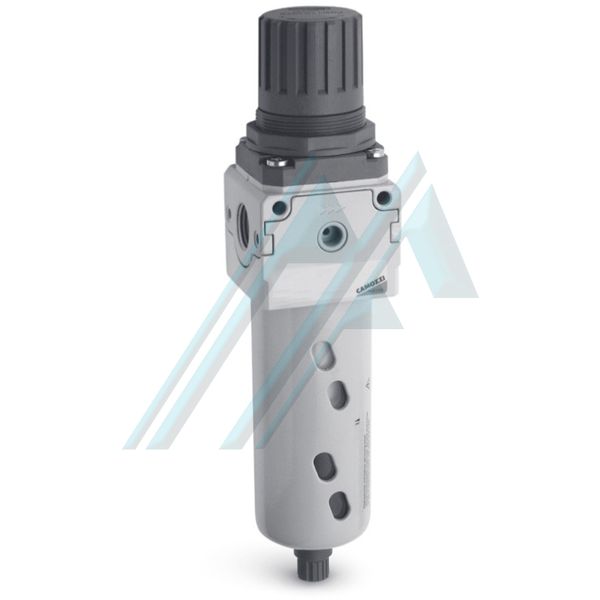

General characteristics:
Construction type: modular, compact with HDPE filter element - syst. membrane
Materials: zama, NBR, technopolymer
Threaded connection: G1 / 4
Condensing capacity: cm³ 28
Weight: kg 0,443
Pressure gauge connections: G1 / 8
Mounting: vertical, in-line or wall
Working temperature: -5 ° C ÷ 50 ° C at 10 bar (with fluid dew point lower than 2 ° C at min. Working temperature)
Filter element porosity: 25 μm (standard); 5 μm (on request)
Condensate discharge: manual - standard semi-automatic
Execution: varnished
Inlet pressure: with standard discharge and protected depressurization 0.3 ÷ 16 bar; with depressurization discharge 0.3 ÷ 10 bar; with automatic discharge 1.5 ÷ 12 bar for G3 / 8 and G1 / 2

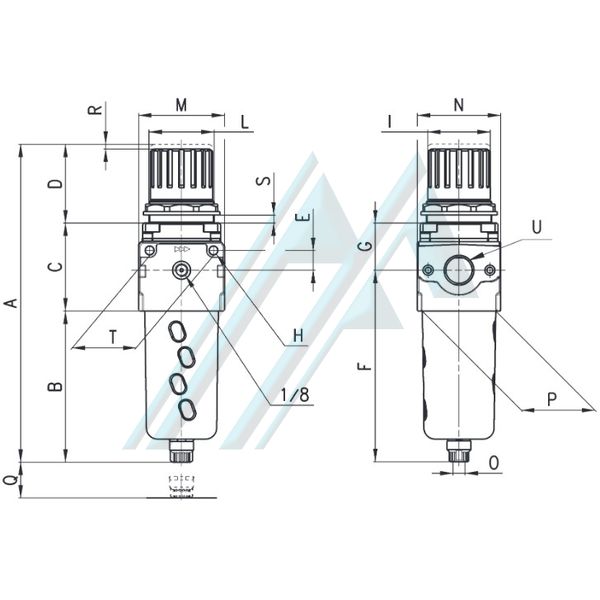

Dimensions:
| MODEL | TO | B | C | D | AND | F | G | H | I | L | M | N | OR | P | Q | R | S | T | OR |
| CMC104D00 | 190.5 | 102 | 52 | 38 | eleven | 126.5 | 27.5 | 4.5 | 28 | 30x1.5 | Four. Five | Four. Five | G1 / 8 | 37 | 58 | 3 | 0 ÷ 6 | 35 | G1 / 4 |
