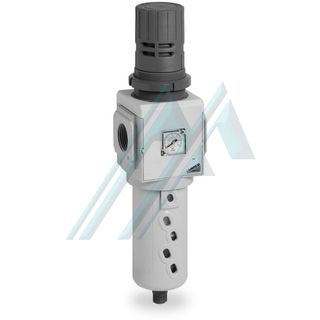

General characteristics:
Construction: modular, compact with HDPE filter element
Connections: MX2: G3 / 8 - G1 / 2 - G3 / 4; MX3: G3 / 4 - G1
Condensing capacity: MX2: 55 cc; MX3: 85 cc
Mounting: vertical in line: wall mounting (via fasteners); panel mount
Operating temperature: -5 ° C ÷ 50 ° C up to 16 bar (with dew point below 2 ° C at min. Working temperature); 50 ° C ÷ 60 ° C up to 10 bar (with dew point below 2 ° C at min. Working temperature)
Filter element porosity: 25 μm (standard); 5 μm
Condensation discharge: MX2: semi-automatic manual (standard), automatic, depressurization, protected, no discharge (with G1 / 8 port); MX3: semi-automatic manual (standard), automatic, no download (with G1 / 8 port)
Operating pressure: 0.3 ÷ 16 bar (with automatic discharge 1.5 ÷ 12)
Fluid: compressed air
Pressure gauge: version with embedded pressure gauge (standard); version with G1 / 4 port for pressure gauge (MX3 only); version with G1 / 8 port for pressure gauge (MX2 only)
Dimensions:
MODEL | TO | B (bar) | C | D | AND | F | G | H | I | L | M | N | OR | P | Q | R | S | T | OR | Kg |
CMX238FR004 | G3 / 8 | 0 ÷ 12 | 70 | Four. Five | Ø4.7 | M47x1.5 | 55.5 | 74.5 | 68 | G1 / 8 | 66 | 290 | 127 | 78 | 5 | 85 | 174.5 | 37.5 | 0 ÷ 16 | 0.8 |
CMX212FR004 | G1 / 2 | 0 ÷ 12 | 70 | Four. Five | Ø4.7 | M47x1.5 | 55.5 | 74.5 | 68 | G1 / 8 | 66 | 290 | 127 | 78 | 5 | 85 | 174.5 | 37.5 | 0 ÷ 16 | 0.8 |
CMX234FR004 | G3 / 4 | 0 ÷ 12 | 70 | Four. Five | Ø4.7 | M47x1.5 | 55.5 | 74.5 | 68 | G1 / 8 | 66 | 290 | 127 | 78 | 5 | 85 | 174.5 | 37.5 | 0 ÷ 16 | 0.8 |
CMX334FR004 | G3 / 4 | 0 ÷ 12 | 89.5 | 54 | Ø4 | M57x1.5 | 61.5 | 81 | 76 | G1 / 8 | 75 | 3. 4. 5 | 142 | 104 | 5 | 99 | 196.5 | 44.5 | 0 ÷ 20 | 1.3 |
CMX31FR004 | G1 | 0 ÷ 12 | 89.5 | 54 | Ø4 | M57x1.5 | 61.5 | 81 | 76 | G1 / 8 | 75 | 3. 4. 5 | 142 | 104 | 5 | 99 | 196.5 | 44.5 | 0 ÷ 20 | 1.3 |
