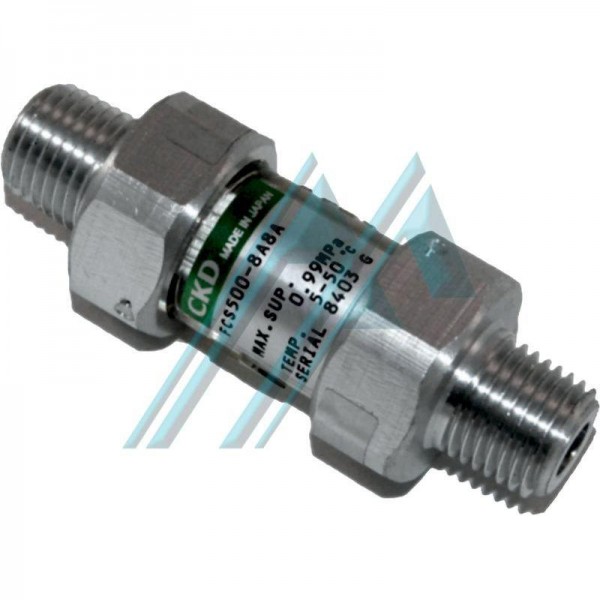

CDK FCS500-8A8A 1/4 "Pneumatic Inline Aspiration Filter

Fluid type: Air.

Max. working pressure: From - 6.55 bar. at 6.82 bar.

Thread: Male-male 1/4 "NPTF

Max. pressure resistance Mpa: From 0.5 (0.2 to 45 (113 ° F) to 50 (122 ° F) ° C).

Operating temperature: + 5ºC (41 ° F) to + 50ºC (122 ° F).

Filtration grade: 0.01 (99.99% removal efficiency) μm.

Flow: 50 l / min.

Material:

Body: Polyamide and aluminum.

Case: Transparent polyamide.

Elements: Polypropylene and urethane.
