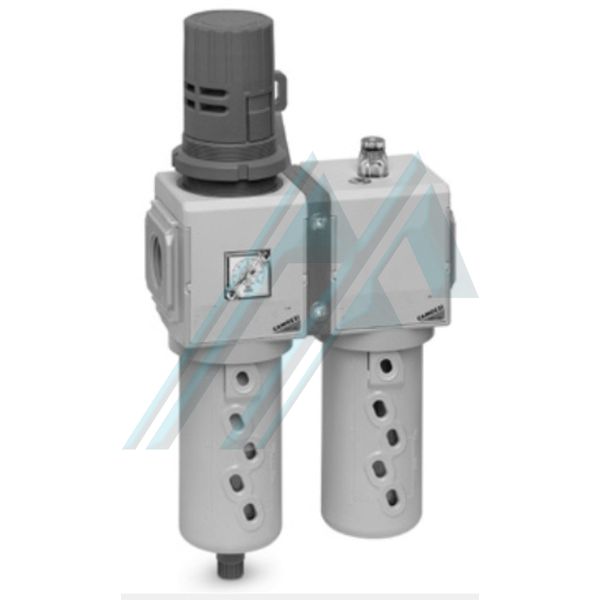

The use of three different types of quick clamps (standard, with wall fixing with screws or with brackets) allows easy mounting of the assembled groups and to carry out maintenance operations on the individual components without the need to disassemble the group.
General characteristics:
Construction: modular, compact.
Connections: MX2: G3 / 8 - G1 / 2 - G3 / 4; MX3: G3 / 4 - G1.
Mounting: vertical in line; wall mounting (by means of clamps); panel mounting.
Operating temperature: -5 ° C ÷ 50 ° C up to 16 bar (according to the individual characteristics of each component); 50 ° C ÷ 60 ° C up to 10 bar (according to the individual characteristics of each component).

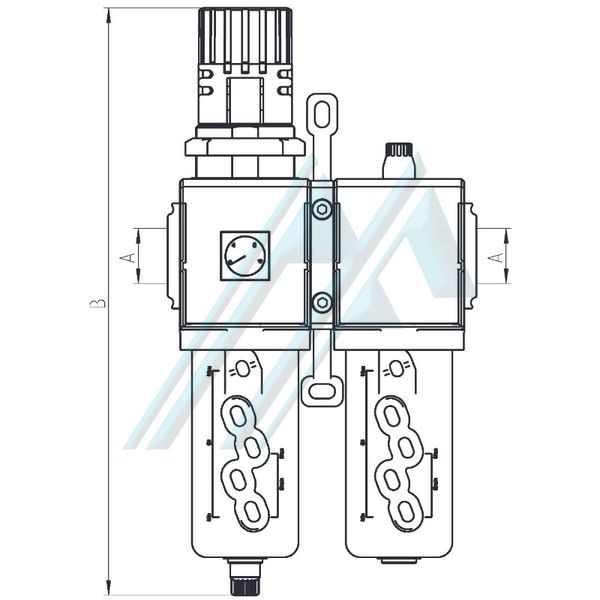

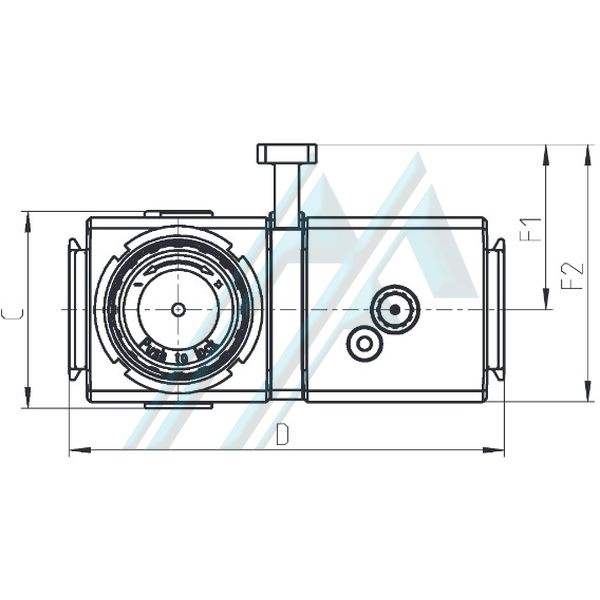

Dimensions:
| MODEL | TO | B | C | D | F1 | F2 |
| CMX238000002 | G1 / 2 | 289 | 74.5 | 140 | 70 | 104.5 |
| CMX212000002 | G3 / 8 | 289 | 74.5 | 140 | 70 | 104.5 |
| CMX234000002 | G3 / 4 | 289 | 74.5 | 140 | 70 | 104.5 |
| CMX334000002 | G3 / 4 | 3. 4. 5 | 81 | 179 | 68 | 106 |
| CMX31000002 | G1 | 3. 4. 5 | 81 | 179 | 68 | 106 |
