General characteristics:
Construction type: modular, compact
Materials: zama, NBR, technopolymer
Threaded connections: G1 / 4
Mounting: vertical in line or to the wall
Working temperature: -5 ° C ÷ 50 ° C at 10 bar (with fluid dew point lower than 2 ° C at min. Working temperature)
Execution: varnished
Flow: determined at 6 bar inlet with ∆P 1 (∆P 0.5 only for FRL group)

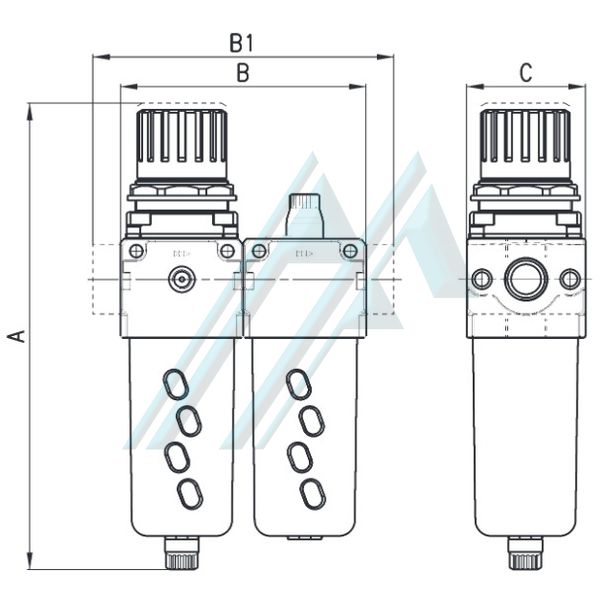

Dimensions:
| MODELS | TO | B | B1 | C | FLOW Nl / min |
| CMC104C5 | 193.5 | 90 | Four. Five | 1450 |
